chain tensioner/guide

Hi guys...has anyone used any other chain guide or tensioner on their xt...like a chain blick or one for a trials bike...basicaly a bodge...cheers
Reply With Quote
  #2
Old 16 Jul 2016
Registered Users
Veteran HUBBer

Join Date: Sep 2012
Location: Middle USA
Posts: 349
I just use the rollers and got some on eBay that work fine. Be sure to lock tight the bolts holding them or they will come loose and fall out... Ask me how I know...
__________________
'84 XT600 is now bored to 2nd oversize and new OEM pistons and rings installed. No more smoking.
Reply With Quote
  #3
Old 16 Jul 2016
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: scotland
Posts: 101
Quote:
Originally Posted by steveloomis View Post
I just use the rollers and got some on eBay that work fine. Be sure to lock tight the bolts holding them or they will come loose and fall out... Ask me how I know...
Steve have you a link or picture of the one you used..mine is miszing altogether
Reply With Quote
  #4
Old 16 Jul 2016
Registered Users
Veteran HUBBer

Join Date: Sep 2012
Location: Middle USA
Posts: 349
I just searched for "Yamaha XT600 roller" on usa eBay and lots of the rollers and chain guides showed up. A complete kit from David Lambeth is here. Bay item number:161492108864. The roller kits are much cheaper if you don't need the swing arm protector.
__________________
'84 XT600 is now bored to 2nd oversize and new OEM pistons and rings installed. No more smoking.
Reply With Quote
  #5
Old 16 Jul 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,329
Is this the one you search? All Balls Lower Chain Roller Black Fits Yamaha XT600 1990 1995 | eBay
Reply With Quote
  #6
Old 16 Jul 2016
Registered Users
Veteran HUBBer

Join Date: Sep 2012
Location: Middle USA
Posts: 349
Yes, that one and others. You need two of them. I use blue locktite to secure the bolts in the frame. Red locktite is too hard to loosen, have to use heat.
__________________
'84 XT600 is now bored to 2nd oversize and new OEM pistons and rings installed. No more smoking.
Reply With Quote
  #7
Old 16 Jul 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,329
Is there any wear on that upper one? cant see how chain is coming up there? This one wears out Seal, Guard
5X6-22151-10-00 thats on rear arm.
Reply With Quote
  #8
Old 17 Jul 2016
Registered Users
Veteran HUBBer

Join Date: Sep 2012
Location: Middle USA
Posts: 349
I think the top roller just helps keep the chain from slapping too much. What seal and guard are you speaking of that are wearing?
__________________
'84 XT600 is now bored to 2nd oversize and new OEM pistons and rings installed. No more smoking.
Reply With Quote
  #9
Old 17 Jul 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,329
Quote:
Originally Posted by steveloomis View Post
I think the top roller just helps keep the chain from slapping too much. What seal and guard are you speaking of that are wearing?
Check rear arm 3tb part nr 9.
Reply With Quote
  #10
Old 18 Jul 2016
Registered Users
HUBB regular

Join Date: Oct 2007
Location: SE england
Posts: 96
It is dark now, so I can't get a pic, but I know exactly what you mean and I can show you what I have fitted to my 4pt soon.
I have a chain guide, made for a mx bike fitted. For me, it meant drilling a hole in the bracket that the pointless original white plastic thing bolts to, and finding or making up some longish bolts to hold the new guide on. Looks the part and does the job, if I say so myself.
Reply With Quote
  #11
Old 20 Jul 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,329
Quote:
Originally Posted by steveloomis View Post
I think the top roller just helps keep the chain from slapping too much.
Its like 10cm up to the roller and how do chain slapping uppwards 10cm? Iam changing the part nr 9 now, its all messed up. Need to remove swingarm, bolt came out first swing
Reply With Quote
  #12
Old 21 Jul 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,329
The lower roller is cheap original, why buy ebay stuff? The original i have on bike has done 40k km and its not all gone, my upper guide has wear but last for along time still. Recomend to remove the bolt holding swingarm every second year for lubrication, if this one get stuck you have a serious problem..And the lubrication with the nipples dont fill into the bolt, it lubricate the bush.
Reply With Quote
  #13
Old 14 Aug 2016
Registered Users
HUBB regular

Join Date: Oct 2007
Location: SE england
Posts: 96
Quote:
Originally Posted by xtorange View Post
It is dark now, so I can't get a pic, but I know exactly what you mean and I can show you what I have fitted to my 4pt soon.
I have a chain guide, made for a mx bike fitted. For me, it meant drilling a hole in the bracket that the pointless original white plastic thing bolts to, and finding or making up some longish bolts to hold the new guide on. Looks the part and does the job, if I say so myself.

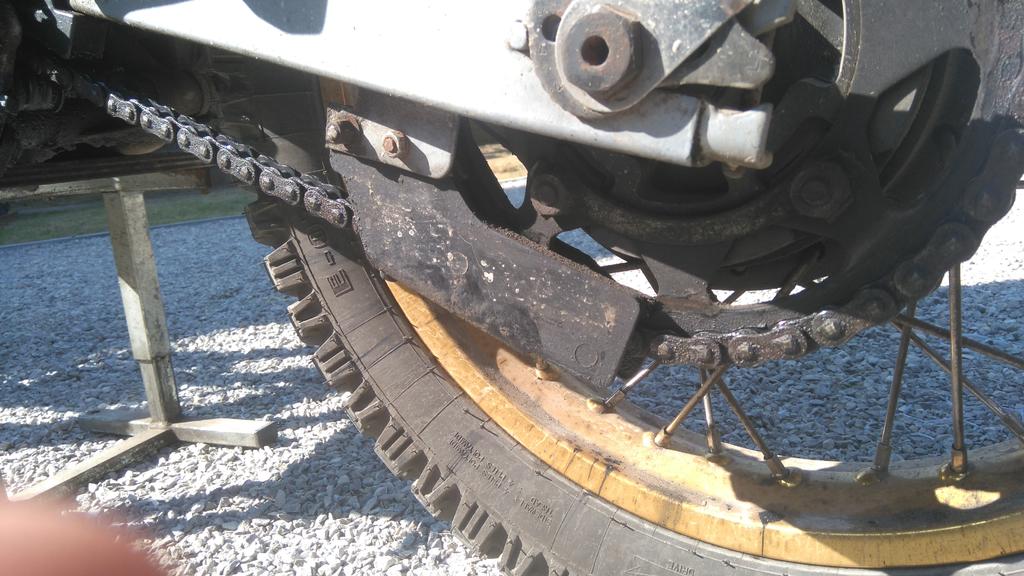

As promised a while.ago, pics of the proper.chain guide I have fitted to my 4pt.
Attached Thumbnails
chain tensioner/guide-dsc_0439.jpg

chain tensioner/guide-dsc_0440.jpg

Reply With Quote
  #14
Old 14 Aug 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,329
Quote:
Originally Posted by xtorange View Post
As promised a while.ago, pics of the proper.chain guide I have fitted to my 4pt.
Ok whats the point with this other than filling up with dirt that sticks to chain?
Reply With Quote
