Killer dowel pin

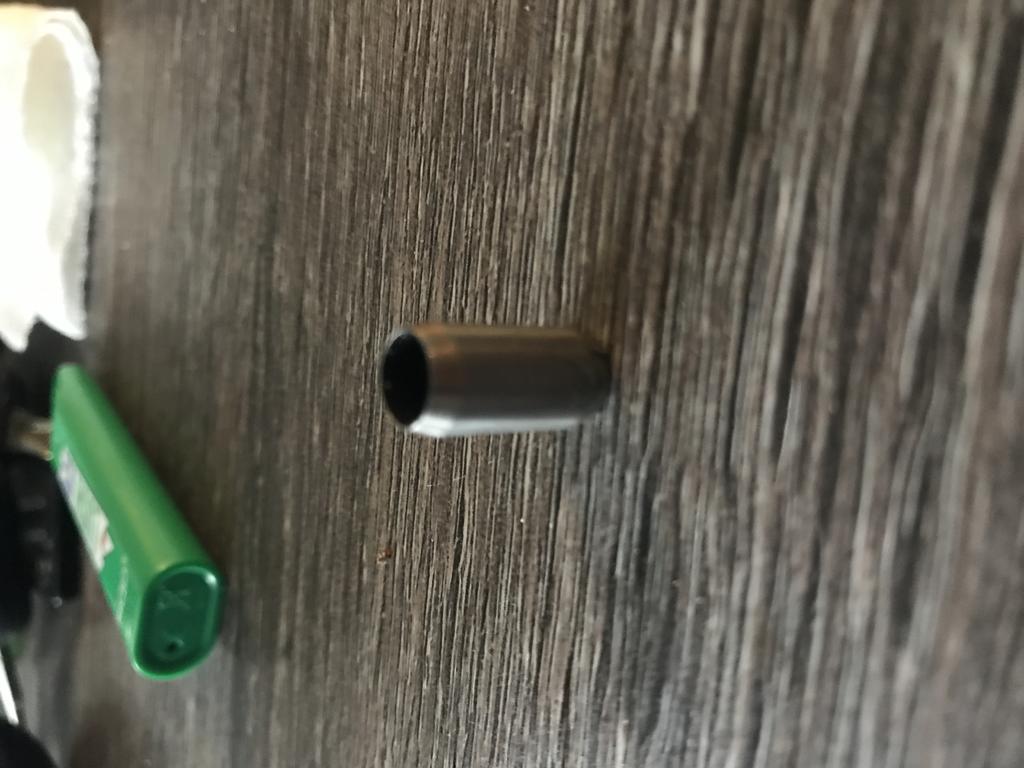

Recently went to change my clutch on my 86’ XT600 and I found a dowel pin sitting at the bottom of the case. Where did this come from? I’m glad I found it before it would’ve wrecked my engine. I just don’t see how this came loose when I just removed the right side clutch cover to change the clutch. Anyone know where this goes?
Attached Thumbnails
Killer dowel pin-305a0064-62c0-46f5-ac5a-9a9ed3950b6e.jpg

Reply With Quote
  #2
Old 15 Jun 2020
Registered Users
HUBB regular

Join Date: Sep 2017
Location: Esperance, Western Australia
Posts: 92
It looks very much like the dowel that is usually captive in the crankcase side of the clutch cover joint and it locates the clutch cover in its correct position.
__________________
Hear the challenge, learn the lesson, pay the cost.
Reply With Quote
  #3
Old 15 Jun 2020
Registered Users
HUBB regular

Join Date: May 2020
Posts: 26
There’s 2 for the clutch cover. I have those on, they are a bit bigger than the one pictured. Is it bad if I don’t have this on?
Reply With Quote
  #4
Old 15 Jun 2020
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
Quote:
Originally Posted by RealSpaceCowboy View Post
There’s 2 for the clutch cover. I have those on, they are a bit bigger than the one pictured. Is it bad if I don’t have this on?
Very odd? they almost look like the ones that go between the head & barrel or the head a cam cover, but i don`t see how they could end up down there? unless somebody screwed up doing an engine rebuild.

Mezo.
Reply With Quote
  #5
Old 15 Jun 2020
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 562
talk to previous owner, ask what work has been done.
could be top end related, if missing indeed not so good that its without as they take care of parts alignment, but you can only find out by disassembly....


measure and post the dimension, to me it looks like one for an M6 bolt, so could have been rocker cover related and it simply dropped down through the cam chain tunnel.


bad mechanic in any case!



yes, you are lucky it didnt jam the transmission or something. that why its good to have a magnetic sump plug, in theory it could hold any loose bits in a safe place.
Reply With Quote
  #6
Old 18 Jun 2020
Registered Users
HUBB regular

Join Date: May 2020
Posts: 26
Quote:
Originally Posted by Mezo View Post
Very odd? they almost look like the ones that go between the head & barrel or the head a cam cover, but i don`t see how they could end up down there? unless somebody screwed up doing an engine rebuild.

Mezo.
Has to be a previous rebuild. I’m just glad I caught it before anything happened.
Reply With Quote
  #7
Old 18 Jun 2020
Registered Users
HUBB regular

Join Date: May 2020
Posts: 26
Quote:
Originally Posted by turboguzzi View Post
talk to previous owner, ask what work has been done.
could be top end related, if missing indeed not so good that its without as they take care of parts alignment, but you can only find out by disassembly....


measure and post the dimension, to me it looks like one for an M6 bolt, so could have been rocker cover related and it simply dropped down through the cam chain tunnel.


bad mechanic in any case!


yes, you are lucky it didnt jam the transmission or something. that why its good to have a magnetic sump plug, in theory it could hold any loose bits in a safe place.

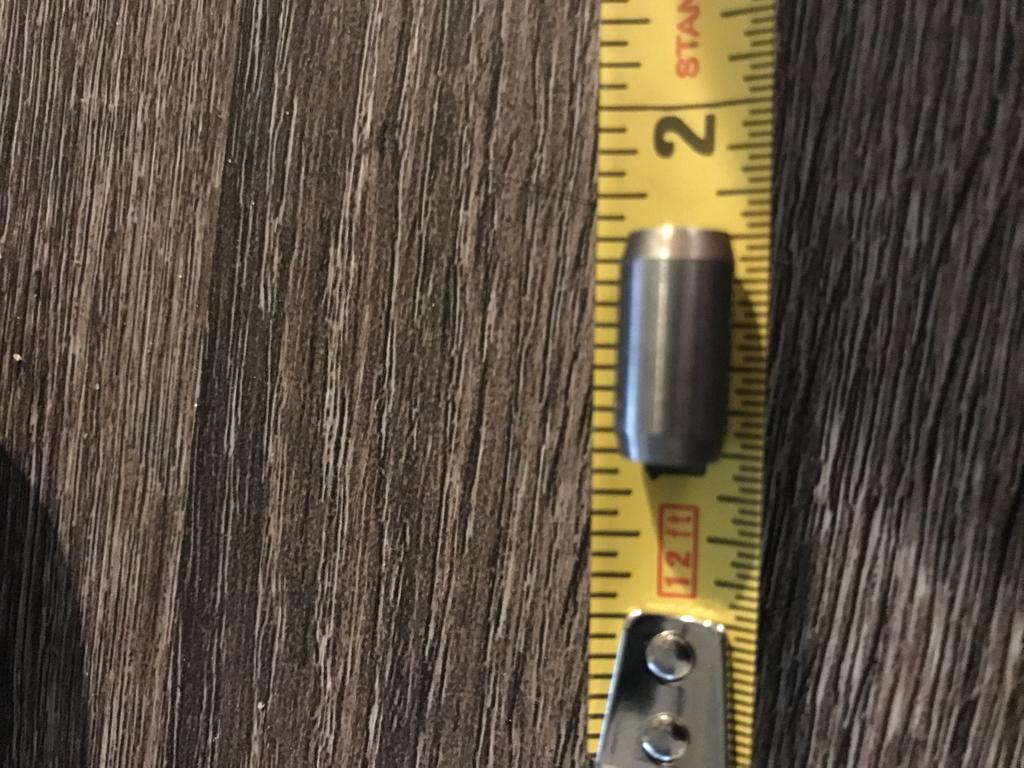

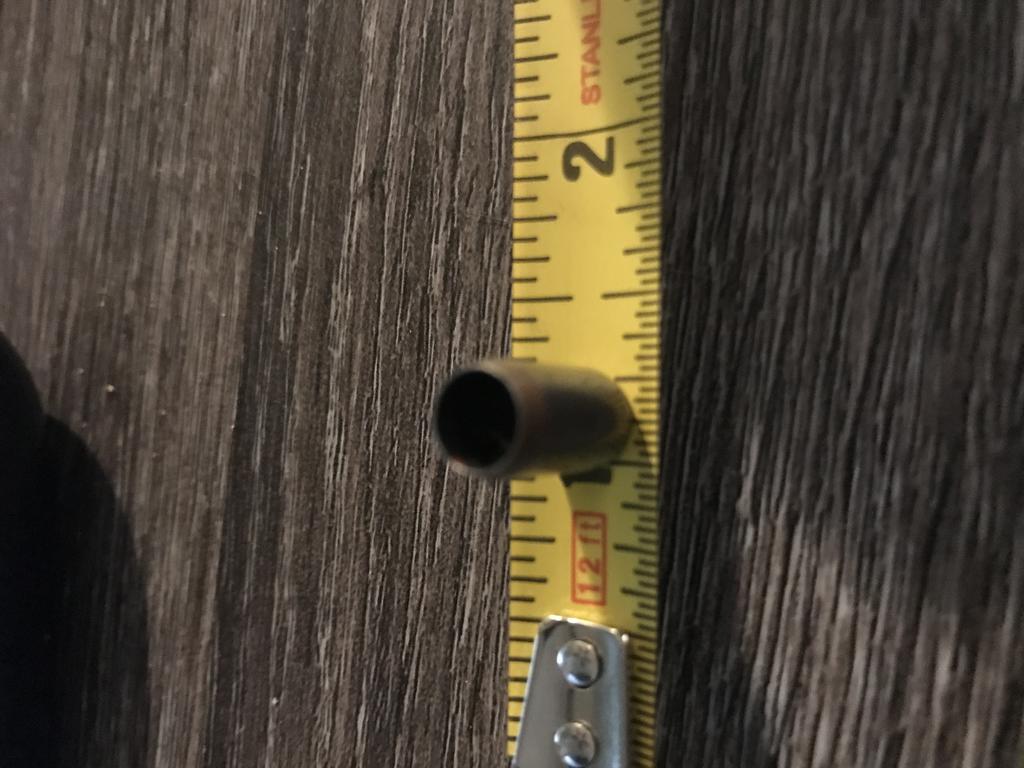

Here are some pics of the dimesions
Attached Thumbnails
Killer dowel pin-1fa4f854-5cca-4990-beb9-3b5efa491250.jpg

Killer dowel pin-7703b589-2846-4e8e-9041-8c3d3c6fb753.jpg

Reply With Quote
  #8
Old 19 Jun 2020
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 562
i suspect part number 6 here


only front one shown, but there should be two of them, front and rear holes


https://www.ronayers.com/oemparts/a/.../cylinder-head
