  #1
Old 31 Aug 2022
Registered Users
HUBB regular

Join Date: Jul 2008
Location: Aalesund, Norway
Posts: 86
1VJ questions.

Is there any place I can find a way to identyfi different models of the XT ?

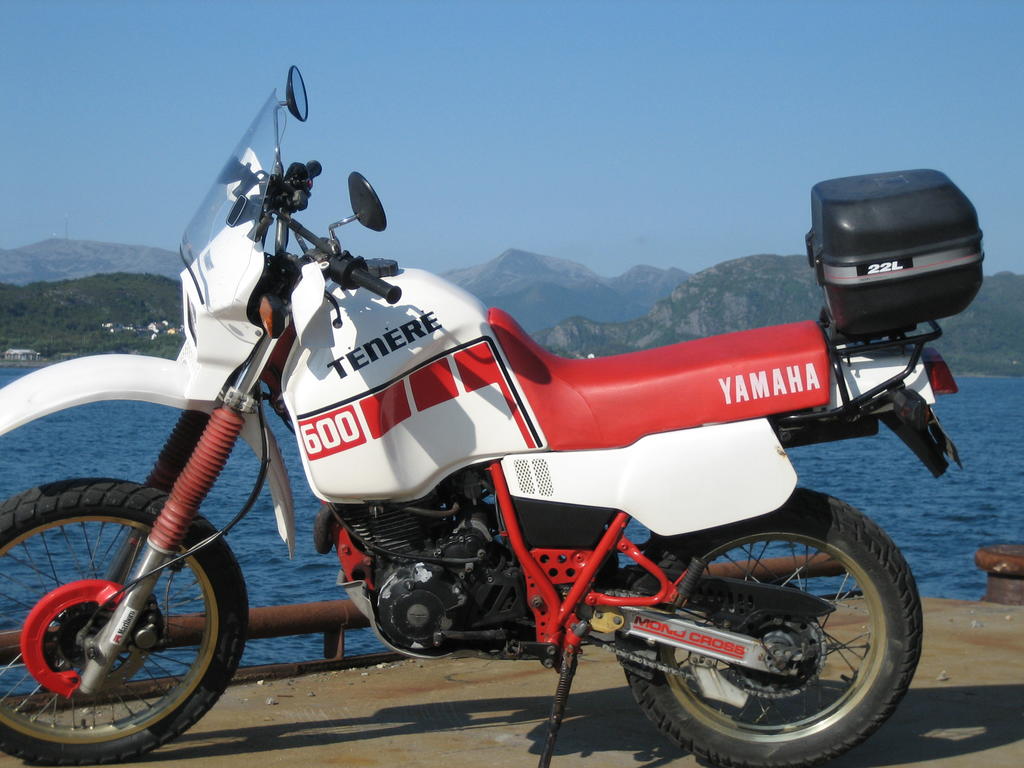

I got 2 white and red 1vj, 86 and 87 mod and they have different colors on the tank grafic, 86 have black and blue text and blue stripe, the 87 have black text and stripe, is that correct for the years ?
The 86 have a broken rod bearing so the engine need a full reduild, where is the best place to get parts for that, like bearings , seals and so on ?
Attached Thumbnails
1VJ questions.-img_1854.jpg

1VJ questions.-20220730_115050.jpg

Reply With Quote
  #2
Old 31 Aug 2022
Gold Member
Veteran HUBBer

Join Date: Apr 2000
Location: Samaipata / Bolivia
Posts: 890
1VJ

Nice bike

Quote:
I got 2 white and red 1vj, 86 and 87 mod and they have different colors on the tank grafic, 86 have black and blue text and blue stripe, the 87 have black text and stripe, is that correct for the years ?
mine is an 87 model and when I bought it used in 1999 it came with blue text and stripe, but its a very dark blue that could be mistaken for black. I am not that much into detail for all the 1VJ models, but I know that the early one (86) had a different output shaft and for that a different front sprocket.

Quote:
The 86 have a broken rod bearing so the engine need a full reduild, where is the best place to get parts for that, like bearings , seals and so on ?
A good place for parts is KEDO.de in Hamburg. Make sure you get the correct bearings for the crankshaft, its a long time ago that I changed mine ... 2002 in Colombia .... but i think the original ones are C4 bearings.

Quote:
Is there any place I can find a way to identyfi different models of the XT ?
Ingo Löchert and his website rallye-tenere.de (or something similar, do a search and I am sure it will come up) comes to my mind.

A friend is looking for a speedo/rev counter unit for her 1VJ Tenere, if you got a spare one, she would be interested to buy it of you.

saludos
Reply With Quote
  #3
Old 1 Sep 2022
Registered Users
HUBB regular

Join Date: Jul 2008
Location: Aalesund, Norway
Posts: 86
Thanks for the tip, here was some interesting information.
The plan for the bikes is to fix up both, first the 86 mod with the broken engine.
Reply With Quote
  #4
Old 8 Sep 2022
Registered Users
Veteran HUBBer

Join Date: Sep 2002
Location: london,england
Posts: 190
I was told by a very knowledgable chap who worked wonders on my red & white 1vj that originally the lettering was in two tone medium and dark blue, separated horizontally. All the aftermarket graphics are (were?) a solid very dark blue. Any Yamaha Dealer will be able to get parts that are still available. Unfortunately things are running out, which is why i stoped using mine regularly...
Reply With Quote
  #5
Old 9 Sep 2022
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,334
Both colours are listed as 86/87



85mod

Last edited by xtrock; 10 Sep 2022 at 00:48.
Reply With Quote
  #6
Old 4 Dec 2022
Registered Users
HUBB regular

Join Date: Jul 2008
Location: Aalesund, Norway
Posts: 86
Hi !
Now the engine is down to bits and pices and there is a few things I wounder about.

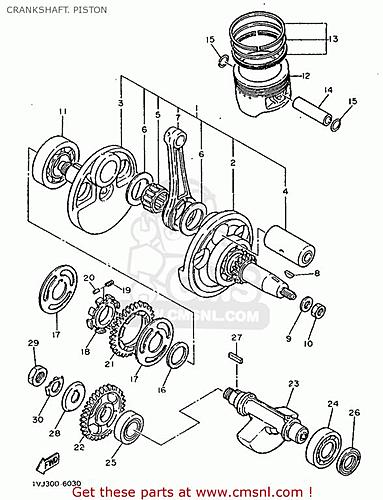

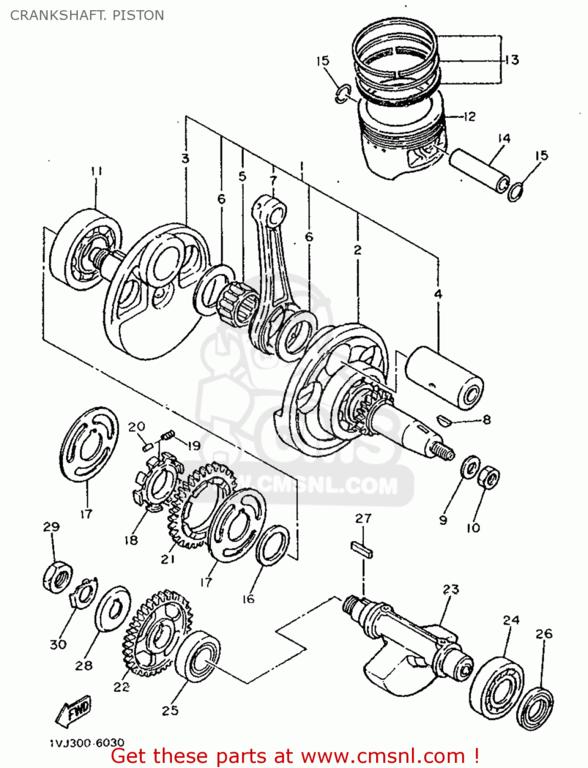

First there is a seal (item 26) on the inside of balance axel, when I thy to get a new on CMSNL it shows in picture but in the list of parts it`s not listed, any idea where I can get a new one or the part number ?

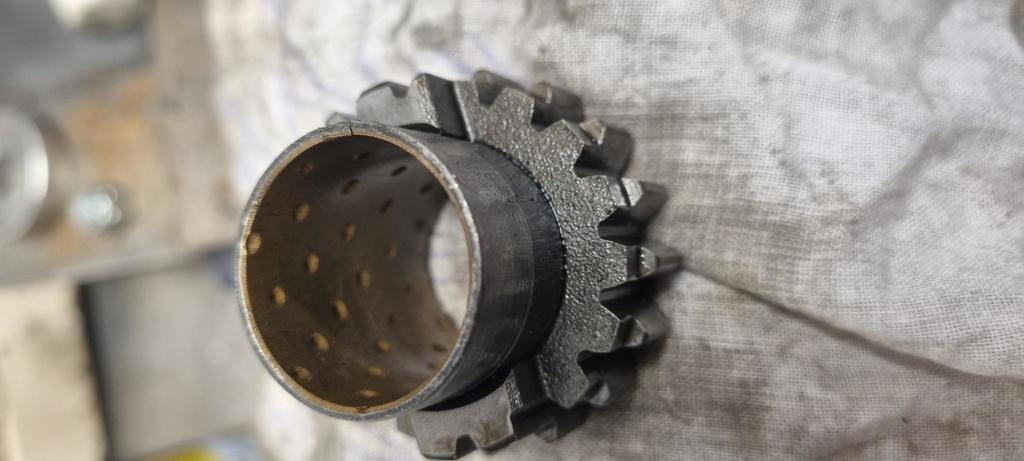

Second is about a kind of bushing in a gearwheel, see picture. Here I can not find in in the picture or list, not sure where it belong but think it`s in gear system somewhere.
Attached Thumbnails
1VJ questions.-20221122_182542.jpg

1VJ questions.-yamaha-xt600z-1986-1vj-europe

Reply With Quote
  #7
Old 5 Dec 2022
Registered Users
HUBB regular

Join Date: Nov 2010
Posts: 66
1VJ questions

Hi, oil seal is 93101 25106, fits into LH crank case.

Don't recognize the gear, maybe centre of clutch drum? in which case it may not be available loose. Looks like a non replaceable type bushing.

Cheers
p
Reply With Quote
  #8
Old 5 Dec 2022
Registered Users
HUBB regular

Join Date: Jul 2008
Location: Aalesund, Norway
Posts: 86
Thanks for the tips, I found the seal on CMSNL.

When I take a close look at my pictures the gear is on the inside of the clutch but I can not find that in the drawing, the gear is looking good but the busshing have some small sign of wear. I might bring it to the Yamaha dealer and ask if they can get one because it looks like it is splitted and can be taken out.
Reply With Quote
  #9
Old 22 Jan 2023
Registered Users
HUBB regular

Join Date: Jul 2008
Location: Aalesund, Norway
Posts: 86
Still working on the bike, engine is all apart and now waiting for crank and cylinder getting back from workshop with new bearing and piston.
Next question is about the swing arm, it need new paint but can`t find out what color it is, Anyone that know the color code for this ?
Reply With Quote
  #10
Old 26 Jan 2023
Registered Users
HUBB regular

Join Date: Jul 2008
Location: Aalesund, Norway
Posts: 86

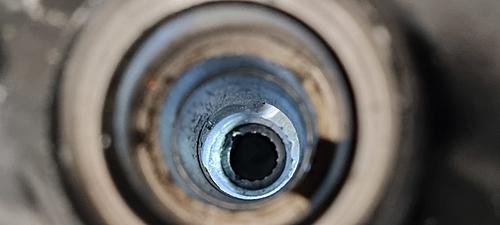

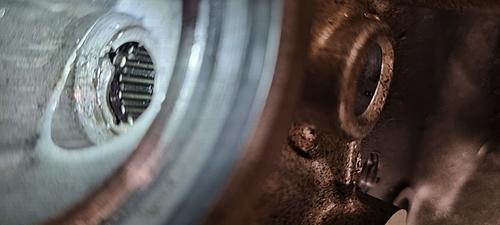

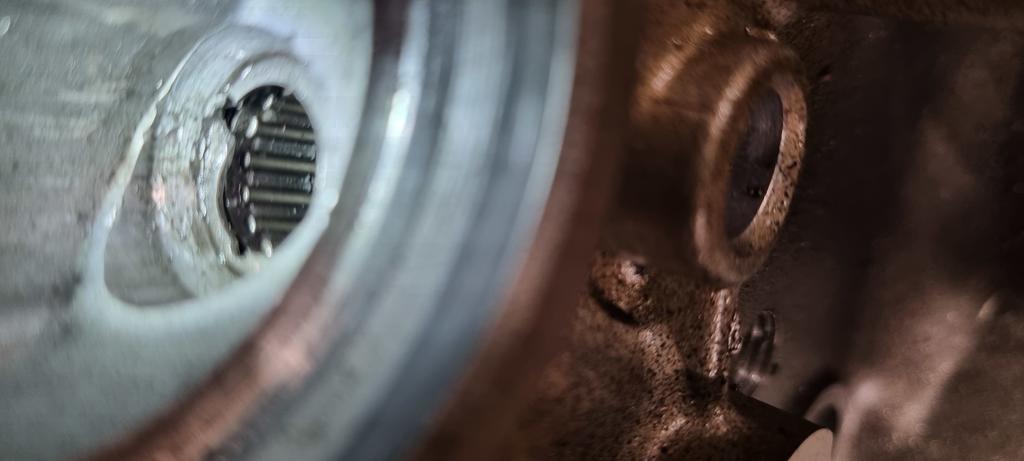

I also got another problem and that is the bottom needlebearing on the clutch arm.
Any one got a tip to get it out, I have not seen any puller that is long and thin that can get in there.
Attached Thumbnails
1VJ questions.-20230126_130648.jpg

1VJ questions.-20230126_130736.jpg

Reply With Quote
  #11
Old 18 Feb 2023
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,334
Quote:
Originally Posted by Speedy Gonzales View Post
I also got another problem and that is the bottom needlebearing on the clutch arm.
Any one got a tip to get it out, I have not seen any puller that is long and thin that can get in there.
https://www.biltema.no/bil---mc/bilv...0aAmeaEALw_wcB

If you have easy access use expansion bolt and puller.
Reply With Quote
  #12
Old 19 Feb 2023
Registered Users
HUBB regular

Join Date: Jul 2008
Location: Aalesund, Norway
Posts: 86

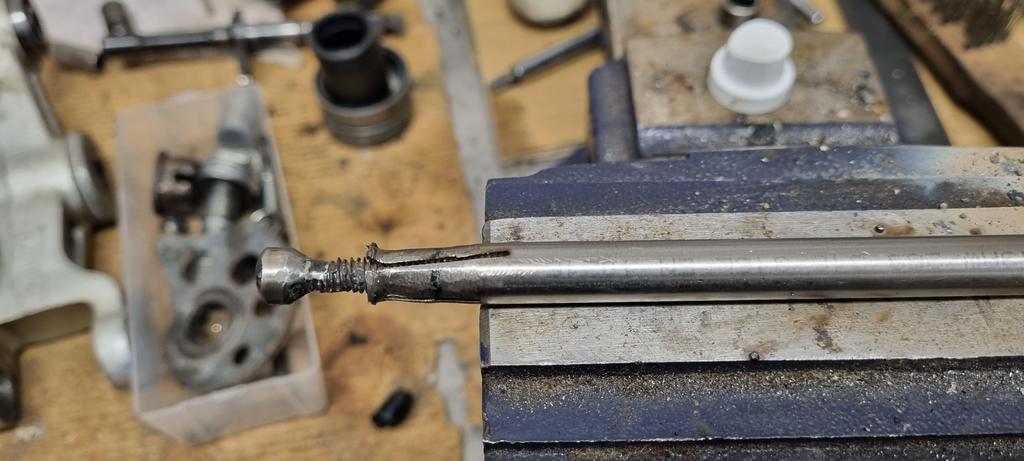

Here I made me a puller to take it out.
Attached Thumbnails
1VJ questions.-20230127_183758.jpg

Reply With Quote
  #13
Old 20 Feb 2023
Registered Users
HUBB regular

Join Date: May 2017
Posts: 85
there is a 450 pages thread on advrider.com There are very knowlege people who know these bikes very well and are willing to help.

a google search ''advrider yamaha 1jv''thread''t ake you to the thread.
Reply With Quote
