  #1
Old 23 Jan 2015
Registered Users
Veteran HUBBer

Join Date: Dec 2012
Location: Haarlem, The Netherlands
Posts: 177
My babies

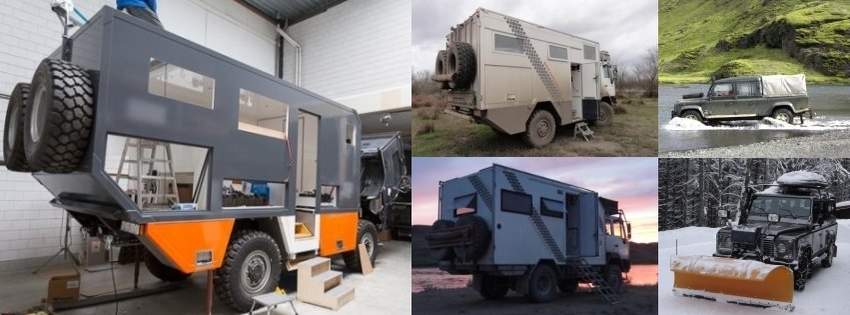

These are my babies from left to right:

1)Under construction: MAN 18.290, our new overland vehicle, will be ready end of 03/2015
2)Our previous MAN 10.220, we did 315.000 km with this one, sold it few years ago, new owner still happy
3)Our current MAN 10.220, we did 169.000km with this one, now for sale
4)Our previous Landrover 130 DC TD5
5)Our current Landrover 110 Stawag, using it as a private car and to keep the road to our house clean.

GRTZ,

Jeroen
Attached Thumbnails
My babies-fb3.jpg

Reply With Quote
  #2
Old 23 Jan 2015
Registered Users
HUBB regular

Join Date: May 2013
Location: Madrid
Posts: 58
You are a lucky man
Reply With Quote
  #3
Old 23 Jan 2015
Registered Users
Veteran HUBBer

Join Date: Dec 2012
Location: Haarlem, The Netherlands
Posts: 177
MAN instead of man.............????
Reply With Quote
  #4
Old 23 Jan 2015
Registered Users
HUBB regular

Join Date: Jan 2012
Location: UK
Posts: 28
Hi Jervig,

The latest MAN has a very ORMOCAR look about it. Do you have a website of any further details of equipment and systems?

What was the reason for selling the old truck and starting again?
__________________
http://www.triptruck.net
Reply With Quote
  #5
Old 24 Jan 2015
Registered Users
Veteran HUBBer

Join Date: Dec 2012
Location: Haarlem, The Netherlands
Posts: 177
Ormocar?? No way sorry!!

The reason to build a new one now is the last possibility to register Euro 5 without Ad Blue. Otherwise we could wait for 2 or 3 years.
Another reason is that it is nice to bring the 1/2 million km experience together in a new vehicle.
We started to doubt about selling our current MAN, more and more the idea to ship the new or the current one to another continent is settling.
In a few weeks I will complete the story about the construction in Dutch and put it on our website, after that I will translate it and put it here.
GRTZ,
JP
PS nice Leyland/Daf you have. On our last trip to Magadan we met some British with a Leyland/Daf and travelled together 2 or 3 times for a few days.
Reply With Quote
  #6
Old 24 Jan 2015
Registered Users
HUBB regular

Join Date: Jan 2012
Location: UK
Posts: 28
It was the cappings, the angled leading edge of the cabin, and apertures that appear to be ready for KCT windows that put me in mind of ORMOCAR. Look forward to seeing more details after the translation.

Thanks for the compliment re our truck. It's very capable but, of course, much less refined than a modern MAN.

It will be interesting to read about your take on low sulphur diesel, and engine management reliance upon electronics at some stage.

I hope the project goes well in the coming weeks and months: may your niggles be small and easily overcome...
__________________
http://www.triptruck.net
Reply With Quote
  #7
Old 24 Jan 2015
Registered Users
HUBB regular

Join Date: May 2007
Location: Essex Uk
Posts: 72
Hi Jeroen

They all look great, a real credit to you.

Can a I ask what the construction is, is it Steel frame / GRP.?

I can see a crane arm on the back for the tyres, I was wondering were the strength for the crane base comes from.

I have a similar cabin and because I don't have any additional strength in the GRP I have had some crane design issues , but I like yours so would! be interested a her it gets its strength from

Looking forward the the web site

Neil

UK.
Reply With Quote
  #8
Old 24 Jan 2015
Registered Users
Veteran HUBBer

Join Date: Dec 2012
Location: Haarlem, The Netherlands
Posts: 177
Hi,

All three have a crane, in all cases the design is different, but also in all cases the mounting of the crane is combined with the carrier of the spares.

All three have no frame at all in the sandwich construction.

No 1 has a INOX carrier outside all over the back of the cel

No 2 has a iron carrier mounted on the backside of the chassis

No 3 has a iron carrier laminated in the sandwich. Done at the moment of production of the sandwich panels.

GRTZ,

Jeroen
Reply With Quote
  #9
Old 25 Jan 2015
Registered Users
Veteran HUBBer

Join Date: Jun 2007
Location: Dubai, UAE
Posts: 206
Would love to see a detailed thread about your latest build, it looks fantastic!
What are your plans to do with it once completed?
Reply With Quote
  #10
Old 25 Jan 2015
Registered Users
Veteran HUBBer

Join Date: Dec 2012
Location: Haarlem, The Netherlands
Posts: 177
The first (test) trip (06/2015) will be to the Russian Federation, Karelia, Archangelsk, Oeral. A relatively short trip, between 15 and 20k km. After that i don't know yet, to keep or sell our 2006 10.220 MAN and which one of them to ship to America for two or three years. We plan a trip to Australia and NZ as well but I hate SE Asia so we might ship the other one directly from here overthere. All luxery "problems" we will see what will come out.

GRTZ,

JP
Reply With Quote
  #11
Old 25 Jan 2015
Registered Users
Veteran HUBBer

Join Date: Dec 2012
Location: Haarlem, The Netherlands
Posts: 177
I put some pictures of the building progress in a slideshow

GRTZ,

JP
Reply With Quote
  #12
Old 26 Jan 2015
Registered Users
HUBB regular

Join Date: Jan 2012
Location: UK
Posts: 28
Looking very nice indeed, very high quality work.

The belly lockers must have taken a very long time to fabricate - there are some very awkward angles there.

Are they formed in aluminium?
__________________
http://www.triptruck.net
Reply With Quote
  #13
Old 26 Jan 2015
Registered Users
Veteran HUBBer

Join Date: Dec 2012
Location: Haarlem, The Netherlands
Posts: 177
No Alu, Inox (stainless) steel it is.

GRTZ,

JP
Reply With Quote
  #14
Old 15 Mar 2015
Registered Users
Veteran HUBBer

Join Date: Dec 2012
Location: Haarlem, The Netherlands
Posts: 177
Quote:
Originally Posted by Jervig View Post
These are my babies from left to right:

1)Under construction: MAN 18.290, our new overland vehicle, will be ready end of 03/2015
2)Our previous MAN 10.220, we did 315.000 km with this one, sold it few years ago, new owner still happy
3)Our current MAN 10.220, we did 169.000km with this one, now for sale (sold)
4)Our previous Landrover 130 DC TD5
5)Our current Landrover 110 Stawag, using it as a private car and to keep the road to our house clean.

GRTZ,

Jeroen
Our 10.220 (nr 3) is sold. Within a few weeks we will start with our 18.290, Can't wait........

GRTZ,

Jeroen
Reply With Quote
  #15
Old 17 Jan 2018
Registered Users
Veteran HUBBer

Join Date: Dec 2012
Location: Haarlem, The Netherlands
Posts: 177
As I see there is a promis left open, sorry for that.

Here 3 video's about the result:

https://youtu.be/o92oLBsfjVE interieur

https://youtu.be/UOrFNuXdews exterieur

https://youtu.be/ndgsf7QtoLw constructing

Enjoy,

GRTZ

JP
Reply With Quote
