home made pannier

I just made my own alloy pannier. They are in Aluminium. I have bean told to use the type 5005 (that means semi-hard, and 'eloxed' = anodised). I used pop rivets to fix the things. You can find picture here :

http://www.petiteviree.com/images/moto/boites/index.php

They are currently not really tested (only 600km in france), and I hope they are strong enough : tomorrow we should take the bikes from the Buenos Aire airport and use them through argentina.

Severin.
__________________
250 is enough http://www.petiteviree.com
Reply With Quote
  #2
Old 5 Sep 2005
simmo's Avatar
Contributing Member
Veteran HUBBer

Join Date: Nov 2002
Location: melbourne
Posts: 555
nice!
__________________
Close to Antarctica and a long way from reality
Reply With Quote
  #3
Old 24 Oct 2006
Registered Users
New on the HUBB

Join Date: May 2005
Location: Lausanne, Switzerland
Posts: 17
Home made panniers after RTW

Hi DIY bikers,

after one year and 38 000kms, here is a small 'debriefing' post about my home made panniers.
The difficult part for me was to know what was 'strong enouth'. I had planned to test them before the trip, but time goes so fast that the panniers were finished the last day before our departure.

The major problem we had was with the silent blocks I used to fix the side panniers to bike. They broke one pannier during the first 20k of gravel road in Argentina... So my advice would be to avoid silent blocks, or take really big one (2cm diameter). Silent blocks are rather expensive, and maybe not that usefull. After that I removed them and used bolts instead. No problems.

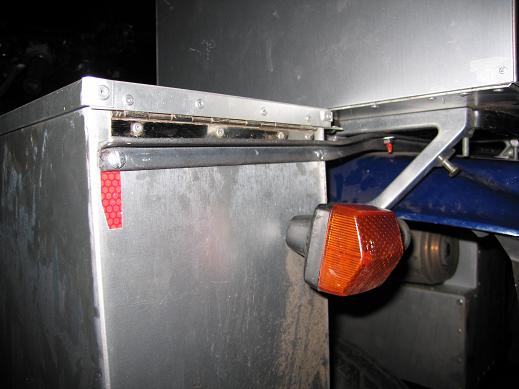

I also added an iron bar to hold the panniers a bit better (see first pict).

IMPORTANT : we were very lucky that the pannier fixation did not broke earlier, e.g. : when we were on the 6 lane ring road around Buenos Aires, or on the highway in France. Just imagine having one side pannier leaving your bike when you are driving at 120km/h, with some buses/cars/trucks behind. It could be very dangerous, so you should really try to test them fully loaded on a empty road, or even better : overloaded on a bad track.

The panniers themselfs were ok, so the 1.5mm alu is really fine. As you can see on the pictures here, you should put a second layer of alu where the panniers are fixed to the bike. On the side where there is no second plate, the alu broke arround the washers at the end of the trip, after >20 000kms, on the other side (last pict), it was ok.

You will find more picts here : http://www.petiteviree.com/blog/section/english/#60

Please ask if you want more details.

Séverin
Attached Thumbnails
home made pannier-barre_boite.jpg

Attached Images

__________________
250 is enough http://www.petiteviree.com

Last edited by severin; 24 Oct 2006 at 22:24.
Reply With Quote
  #4
Old 6 Feb 2007
Registered Users
HUBB regular

Join Date: Jun 2006
Location: Northumberland UK
Posts: 36
Severin excellent information.
Reply With Quote
  #5
Old 1 May 2007
Registered Users
Veteran HUBBer

Join Date: Aug 2005
Location: Calgary AB
Posts: 1,028
Hi severin,

Thanks for detailed info. very helpfull. one question though, what do you mean by "silent blocks". Have you got any photo's of it? I presume you're talking about some type of bracket.

Cheers,
__________________
Tacos Tyring Travels.com
Reply With Quote
  #6
Old 22 May 2007
Registered Users
HUBB regular

Join Date: Aug 2006
Location: Louisiana
Posts: 22
Thanks

That was Inspiring :-)
__________________
SwampFox

Tim 5:1-2
Treat younger men as brothers, older women as mothers, and younger women as sisters, with absolute purity.

http://www.xanga.com/christianrider
Reply With Quote
