Help to unmount rear shock
Hi,

What seems to be a simple task turns out to be quite a job.

I’m trying to unmount the rear shock on my BMW R100GS. The upper and lower bolts are removed along with the rear frame. I ‘ve pulled it about 4mm our from it’s “mounted position” - but here it seems to be stuck. I ‘ve also removed a rubber o-ring from the front and pulled one out of the lower shock mount towards the wheel. It currently have a lot of wiggle room when I rotate the shock.

Any ideas of how I can get it off?

The shock it a TechnoFlex 640.008.001 from 2000.

Thanks,
Casper
Last edited by Traels; 24 Feb 2020 at 15:57.
Reply With Quote
  #2
Old 23 Feb 2020
electric_monk's Avatar
Contributing Member
Veteran HUBBer

Join Date: Aug 2001
Location: Waterford, Ireland
Posts: 309
Impossible to answer without knowing what bike you are talking about?
__________________
The electric monk always has faith.
Reply With Quote
  #3
Old 24 Feb 2020
Grant Johnson's Avatar
HU Founder
Veteran HUBBer

Join Date: Dec 1997
Location: BC Canada
Posts: 7,232
I tried searching for that shock to see if I could match the model number to something but no luck, so yes, we need to know what bike
__________________
Grant Johnson
Seek, and ye shall find.
------------------------
Inspiring, Informing and Connecting travellers since 1997!
www.HorizonsUnlimited.com
Reply With Quote
  #4
Old 24 Feb 2020
Registered Users
New on the HUBB

Join Date: Feb 2020
Posts: 4
Oh yeah- sorry about that.

It's a R100GS 1994.
Attached Thumbnails

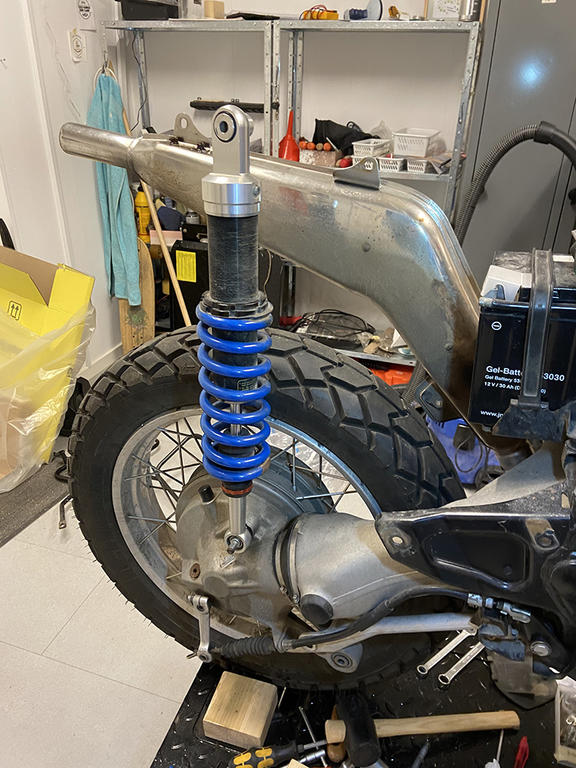

Help to unmount rear shock-img_1334.jpg

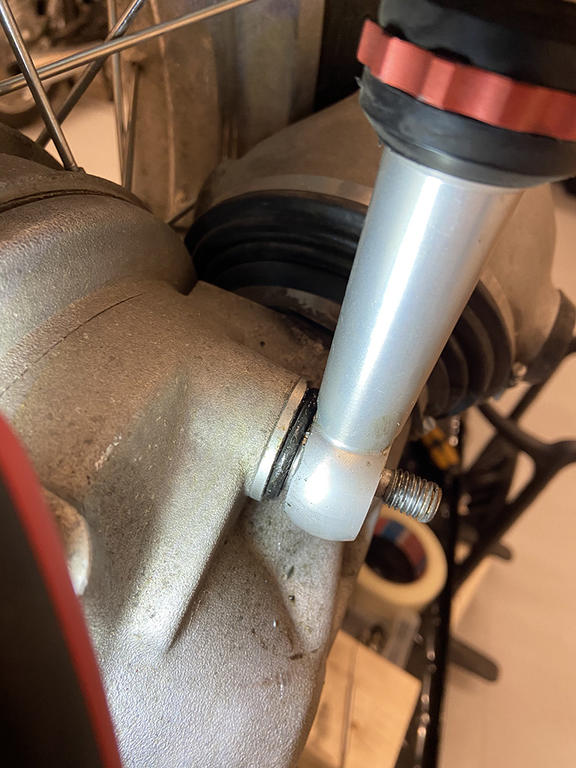

Help to unmount rear shock-img_1335.jpg

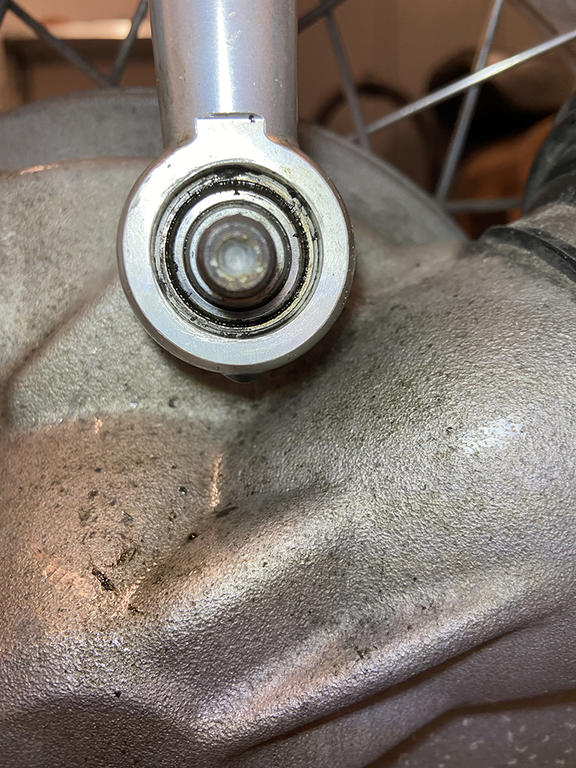

Help to unmount rear shock-img_1336.jpg

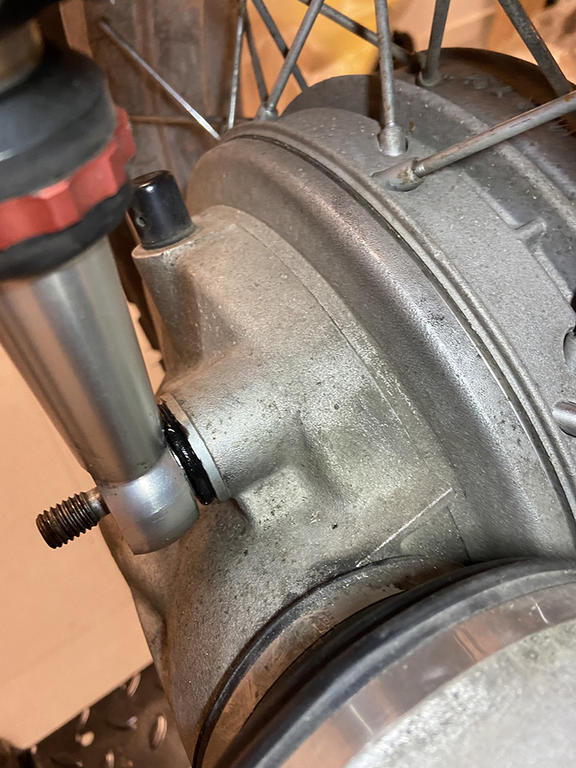

Help to unmount rear shock-img_1337.jpg

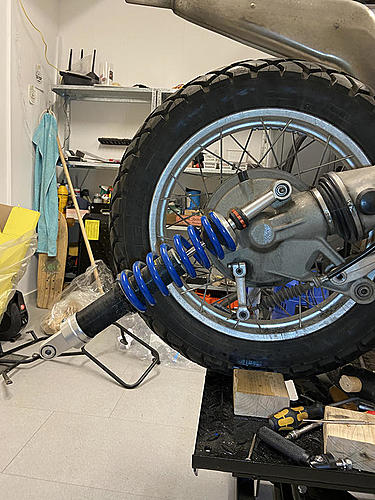

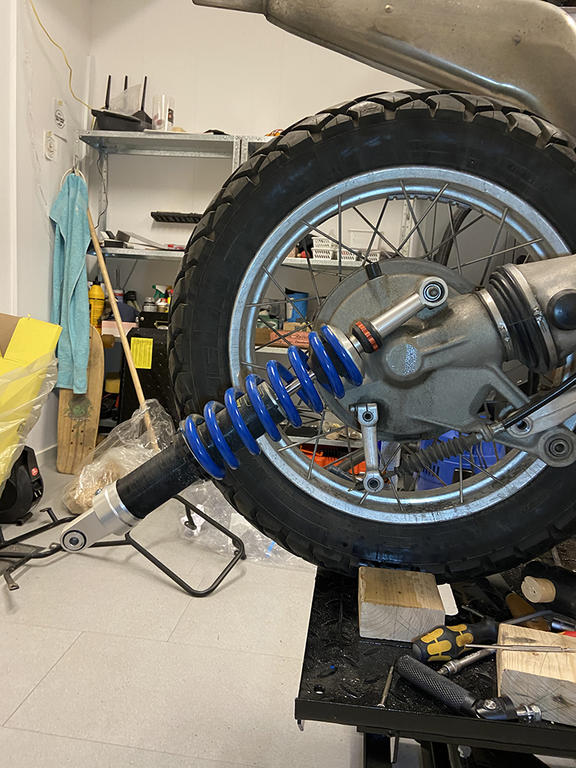

Help to unmount rear shock-img_1338.jpg

Reply With Quote
  #5
Old 24 Feb 2020
Registered Users
Veteran HUBBer

Join Date: Feb 2002
Location: Wessex, UK
Posts: 2,136
I have had fun trying to remove the rear shock from my GS in the past and have found the only way is to use a piece of wood as a drift coming at it through the spokes and hitting the wood with a hammer, it helps if you have someone else support the shock as you do it. Plenty of copper based grease on reassembly should help prevent it happening again.
Reply With Quote
  #6
Old 24 Feb 2020
Registered Users
New on the HUBB

Join Date: Feb 2020
Posts: 4

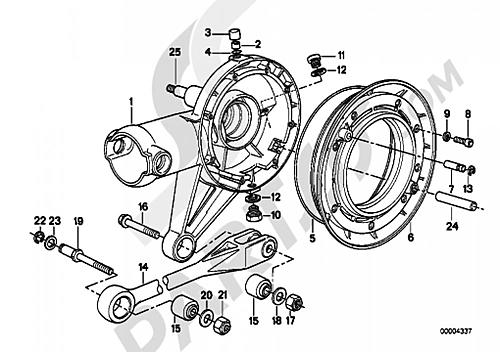

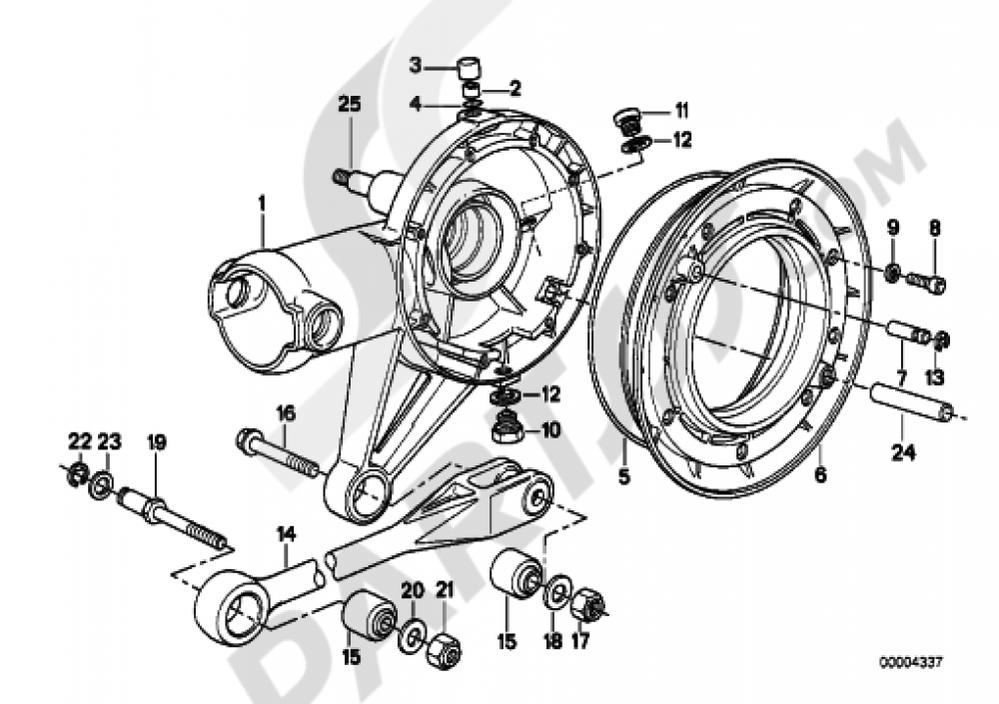

Wondering if I should remove the bolt which the shock mounts on – number 25 in the attached diagram. I can't really tell how big an operation that is.
Attached Thumbnails
Help to unmount rear shock-rear-axle-drive.jpg

Reply With Quote
  #7
Old 24 Feb 2020
Registered Users
New on the HUBB

Join Date: Feb 2020
Posts: 4
Quote:
Originally Posted by mark manley View Post
I have had fun trying to remove the rear shock from my GS in the past and have found the only way is to use a piece of wood as a drift coming at it through the spokes and hitting the wood with a hammer, it helps if you have someone else support the shock as you do it. Plenty of copper based grease on reassembly should help prevent it happening again.
Yeah I've actaully tried that before I unmounted the rear frame. At that point the real wheel was also removed, so I had nice access with a large rubber hammer to beat it.

I later unmounted the rear frame to be able to rotate the shock out of it's upper bracket – to give it more wiggle room.
Reply With Quote
