'82 RS Airhead starter

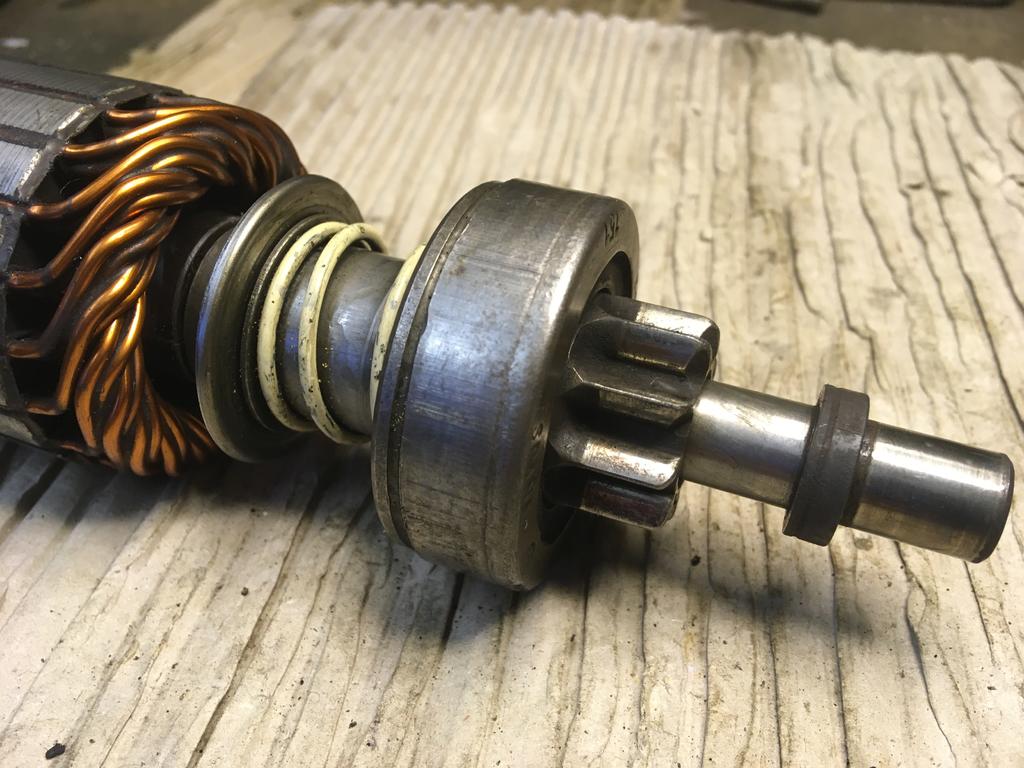

It's a Bosch, the part I'm curious about is the lump right next to the pinion itself that looks like a ball race, it has part no. 1 006 209 401 on it. I've Googled this number and found it shown as Freewheel Gear, starter which makes me think that it might possibly have a clutch inside. Mine is locked solid, it doesn't turn either way relative to the pinion. Should it? It's always worked fine on the bike as far as I know, although it has been off the road for a couple of years by now.
Attached Thumbnails
'82 RS Airhead starter-bmw-rs-starter-1.jpg

__________________
Johnef
Reply With Quote
  #2
Old 9 Nov 2019
Contributing Member
Veteran HUBBer

Join Date: Sep 2018
Location: Belper, uk, EUROPE
Posts: 546
I checked my Clymer manual and it says to check many things - I expect those are the common failure modes - but there was no mention of the free wheel gear getting stuck - but to check for missing / damaged gear teeth. The bearing gets no mention at all.
Reply With Quote
  #3
Old 9 Nov 2019
Gold Member
Veteran HUBBer

Join Date: Mar 2004
Location: Gwynedd, Wales, UK
Posts: 259
Ah, thank you Jay, so that lump really is a one-way clutch then. I only wondered because the thing is absolutely locked tight without any play whatsoever in either direction. I was thinking it was unlikely to have seized this solid in the last couple of years while it stood standing, but now it seems obvious there has to be something like that in there to make sure the starter isn't driven by the engine once it starts.

I'm trying to convince myself that I would have worked that out for myself when I was younger. Sigh ...

Thank you.
__________________
Johnef
Reply With Quote
  #4
Old 10 Nov 2019
Registered Users
HUBB regular

Join Date: Jun 2012
Location: Colchester, Essex
Posts: 81
It is as you say a free wheel gear, one way clutch, sprang clutch etc. It’s purpose is to transmit torque to the pinion adjacent to it, which then drives the flywheel ring gear. When the engine fires and the pinion remains engaged, it will try to drive the starter, which may damage it. The clutch however will slip or free wheel when driven from the engine, thus preventing damage to the starter by overrevving it. It should slip in one direction if you try to turn the pinion by hand.
__________________
You look at where you're going and where you are and it never makes sense, but then you look back at where you've been and a pattern seems to emerge. (Pirsig)
Reply With Quote
  #5
Old 15 Nov 2019
Registered Users
HUBB regular

Join Date: May 2008
Location: Dumaguete, Philippines
Posts: 21
Quote:
Originally Posted by Moto Phoenix View Post
It is as you say a free wheel gear, one way clutch, sprang clutch etc. It’s purpose is to transmit torque to the pinion adjacent to it, which then drives the flywheel ring gear. When the engine fires and the pinion remains engaged, it will try to drive the starter, which may damage it. The clutch however will slip or free wheel when driven from the engine, thus preventing damage to the starter by overrevving it. It should slip in one direction if you try to turn the pinion by hand.
They are usually very tight and do not slip easily by hand power alone. put the armature shaft in a vise and try to turn the pinion gear in either direction with a pipe wrench or channel lock pliers..
Reply With Quote
  #6
Old 17 Nov 2019
Registered Users
New on the HUBB

Join Date: Oct 2007
Posts: 5
The inmates below have given you good advice.
The old Bosch starter is remarkable in its longevity and parts availability but before I threw money at an old Bosch unit I would look at the newer Valeo or if you have the funds the ultimate Nippon Denso. Both of these alternatives are much lighter and more powerful and have the advantage of not requiring the front cover removal to pull the starter. Your choice, just my 2c worth.
And yes that clutch will be firm so a vice will be handy and don’t wash that bendix clutch assembly in solvent, it’s pre lubed and needs to stay that way.
Reply With Quote
