My Land Rover 110 complete build thread

I figured that I would copy my 110 build thread over to here in case anyone was interested..

found on eBay, a 61 plate 110 USW with 9500 miles:

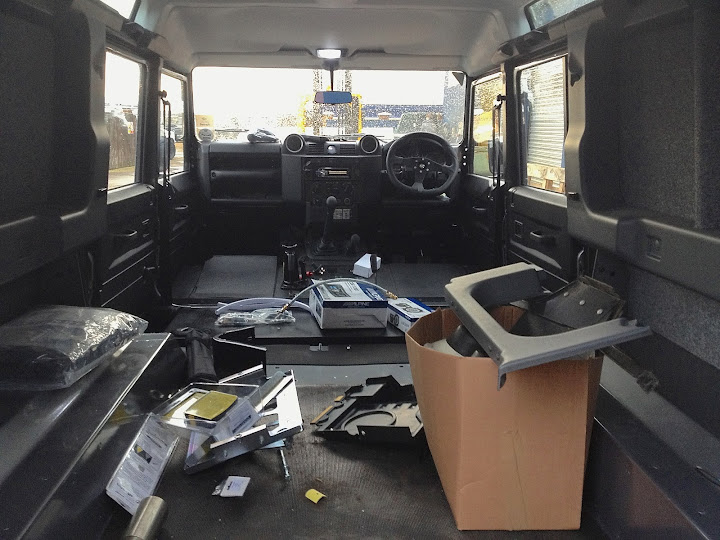

Getting stripped at Nene:

and fitted for a roll cage:

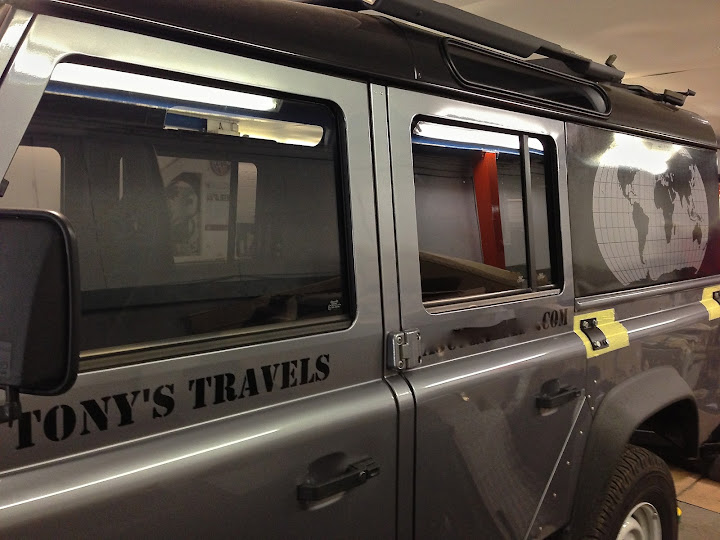

Lots happening today. Decals are on, windows are getting tinted!

Platform is getting finalized

The seats aren't actually mounted yet.

I was told this wouldn't be possible, I did it anyway

Website isn't finished yet, so I blurred out that lettering.

going on now:

tree sliders going on soon

Tree sliders getting fitted, also all hinges swapped for stainless/powdercoated ones:

Full safety devices roll cage fitted:

Might be time for some new wheels soon..


[=ajctraveler;2268638]Winch is on

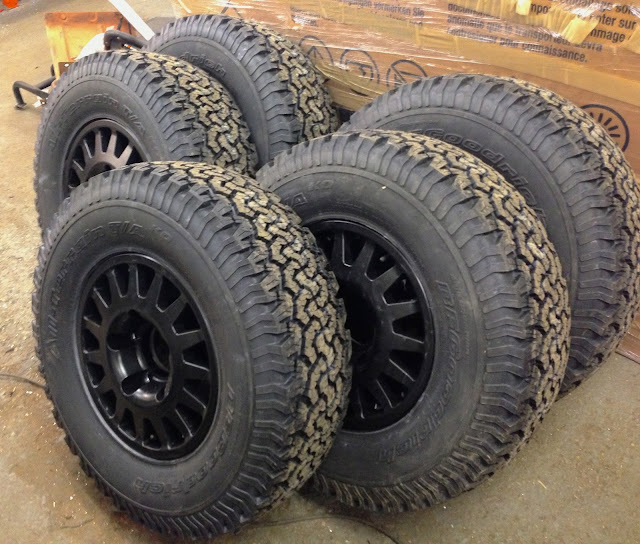

Wheels and tyres are ready (there is a sixth in another part of the shop)

Platform frame is getting welded

Should be done in another two days!!!![/]

[=ajctraveler;2270577]Window caging is going in:

Drawer is mounted and frame is welded/bolted on:

Water tank is bolted to the passenger footwell:

Wheels are on:

Lots more to come tomorrow. Should be finished by the end of the day tomorrow or early thursday at the latest..[/]

rewiring for the new antenna:

Platform layed out:

Rear quarter cheqeur plate on:

Rear door plated:

Securing the platform to the frame. Compresser mounted below.

Full length:

Space for second spare wheel

Head on with new cubby box on the old wheel

Separation caging in

Platform done and spare inside

Getting some carpet

My Travel Page
Reply With Quote
Old 14 Feb 2013
Registered Users
HUBB regular
Join Date: Sep 2012
Posts: 69
Mattress is in, perfect fit

Framing it

Fridge and gas bottle mounted

From the back

Is that a pull up bar???

Seats mounted

Getting there..

Plate on

Test drive to see how the steering is

Where once there was my Defender, now there is none..*

That should do for now, hahhaha. I got out of the UK, but there are still a few bits I was too impatient to wait for. So the car is about 95% at the moment. I will have some things posted to me and I still need to sort out everything inside, it's a disaster at the moment as I just threw everything into the back on the mattress to catch a ferry from Dover!![/]

From the ride down through France in the snow:

Finally made it to Italy full of salt from the roads:

Cleaned up a bit:

A few pictures from Malta:

A little surprise when I went out this morning, seems my Defender made friends overnight

Chunnel train back to England

Some more decals..

Wrapping the fridge in vinyl

Fabricated a little laptop desk for the passenger seat

Decided to get a high lift jack

Progress photo, notice new snorkel head

Decided to throw on some shovels..

Went out to play in the snow a bit:

Finally time to tackle the inside..
Still a mess, maxtrax and camping chair suspended. Pull up bar is the black rod across the back. Also tracks were mounted in four places so that I can strap things down.

Finally it's all done inside and everything just fits!!

Final rear shot: [/]

My Travel Page
Reply With Quote
Old 15 Feb 2013
Contributing Member
Veteran HUBBer
Join Date: Jun 2005
Location: Ledbury, Herefordshire, UK
Posts: 324
Looks great, a lot of time money and effort has been put in to it.

One question, are the back springs correctly rated, it looks a little low on the rear wheels?

With cruisers the back usually tends to be a little bit higher than the front but I always thought the LRs were supposed to be flat/level.

Julian Voelcker
Overland Cruisers - Specialising in Land Cruiser preparation and servicing.
Reply With Quote
Old 15 Feb 2013
Registered Users
Veteran HUBBer
Join Date: Oct 2007
Location: Warrington UK
Posts: 703
I got confused,

In the opening pictures, you show a "61" plate

Then later it is an "07" plate.

Reply With Quote
Old 15 Feb 2013
Registered Users
Veteran HUBBer
Join Date: May 2008
Location: Mid Wales
Posts: 100
Very nice looking truck, quite jealous compared to my '83 110 CSW.

It depends on where you plan on taking it, but a couple of queries.
The origional roof was white, as are virtually all vehicles in Africa for the albido, will it get hot in the sun?
I went the other way with wheels, replacing mine with heavier OEM tubeless steel Wolf rims that can beaten back into shape (or just beaten generally when you watch African apprentices fixing a puncture).
It does look like it is squatting slightly, I ditched the knackered self leveller and changed the rear springs on mine for standard (non-county) OEM ones.
Is the winch hydraulic? looks a tidy installation.
Reply With Quote
Old 16 Feb 2013
Registered Users
Veteran HUBBer
Join Date: Nov 2009
Location: J10 M40 UK
Posts: 362
I would think the plate is a "private plate" as it has his initials on AJC , in UK you can retain a personal plate , as long as it goes on a newer vehicle , you cant put a 61 (2011) plate on a 07 (2007) vehicle .
Re droopy rear end , that year of defender didnt have a "load leveler" as they were dropped by Land rover (too expensive) a few years earlier . HTSH
Reply With Quote
Old 16 Feb 2013
roamingyak's Avatar
Registered Users
Veteran HUBBer
Join Date: Sep 2001
Location: Portugal
Posts: 1,134
(moved from another thread discussing this landy)

Many thanks mate, thats a fine looking landy ;-)

I find normal landy seats quite good, and like the pop out seat bases for quick stops and the easy access behind them (I have an internal bulkhead with a lot of my aux wiring behind the passenger seat and things like compressor gun and warning triangles behind the drivers seat). Do the Recaros fold easy forward and have pull out bases - assume the bases pop out else you can't access the battery box?

In the spirit of information sharing, and not mean't in any way as criticism, just my observations, I thought of these when browsing your pictures - maybe one or two would be useful? They are of course entirely from my point of view for how I like to travel. No need to justify anything, just thought these suggestions might help:

- Your sand ladders are mounted above your mattress. I would spray paint them black and mount them on your roof or bonnet (easier to get on and off quickly when you use them in anger). As they are, when you use them they will drop sand/clay/mud onto your mattress after use.

- Sleeping inside is nice, and I have mine setup to do so as well. If the plan is for a big African trip for example (?) then I'd strongly recommend a rooftent - then you have the best of both worlds ;-) Dust getting inside can be a real problem, as are the numerous spiders, mosquitoes, snakes and bugs that would like to snuggle up with you inside (when camping and the doors are open its surprising what sneaks in). Having air con will help reduce the dust intake.

- Might be really useful to have a small door in the caging - for example in Africa in games parks you might want access to the fridge to get your lunch or a cold drink. Or if you want to drive away at night from bad people! Also if you crash your not restricted to just getting out of the two front doors. With your setup maybe cut out a door in the middle, weld up the edges with steel lengths, hinges at the top with clips holding it onto the drivers cabin roof when you push it forward? Matt Savage custom made me a really good one which locks in place with padlocks - the whole door can be removed quickly as well.

- a small fold down table is really useful on the back door - hinges on the bottom and strapping/string to hold it in place when folded down.

- I blocked out the long thin windows on the side as campsite/street lights often kept me awake.

- I can't see that well, but maybe the back step might cause problems when stuck offloading - simple hinged step might be better?

- Why the fridge in vinyl? 70's retro feel?? ;-p

Thanks again, much appreciated and interesting!!

PS: Check regulations for tinted windows before you go - I think a few countries don't allow them/don't allow front tinted windows - pretty sure one or two in Central Asia don't? Just a thought.
