Acerbis tank

So just fitted my acerbis tank and not very happy the way it bashes off the side of the cylinder head,any one else had this problem?...might have to re design some brackets for better support and attatch them to the front of the frame instead of the long bar that came with it.... had a lot of trouble squeezing the tank together to make the bar fit.....or fit some rubber pieces to the tank to protect it from rattling around.....
Reply With Quote
  #2
Old 24 Sep 2011
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 4,473
And which bike would this be on ???
__________________
www.TouringTed.com
1994 XR650L
2001 NX650 Dominator.

BMW Dealer Technician
Welder/Fabricator

Ushuaia - Colombia 2007/8
UK- South Africa 2010/11
India 2012
Yukon 2012
S.E Asia 2014
U.K - Magadan 2015
Reply With Quote
  #3
Old 24 Sep 2011
Registered Users
Veteran HUBBer

Join Date: Nov 2009
Location: christchurch newzealand
Posts: 384
xt 600e..2002....rebuilt engine with 5th gears replaced.......bar risers,progressive front springs,ohlins rear,large footpegs,zeta handguards,renthal bars,heated grips and gps ready for the next dustybutt,its a 1000km off road ride all over the south island here in newzealand and is an awesome ride........oh and just fitted an acerbis long range tank which now is full of fuel feels a lot more stable......
Reply With Quote
  #4
Old 25 Sep 2011
Registered Users
Veteran HUBBer

Join Date: May 2008
Location: Glasgow
Posts: 301

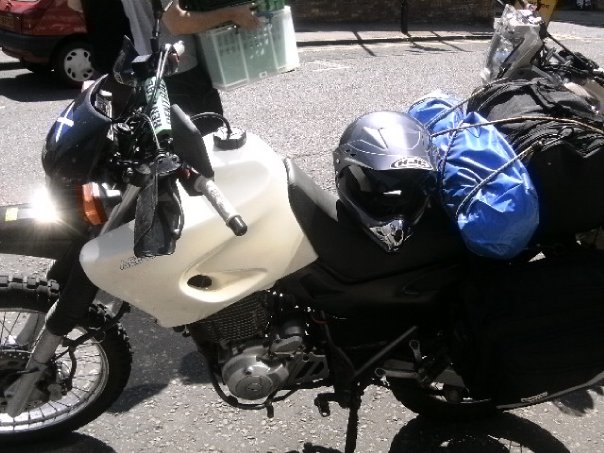

Hi, fitted one to my sons xt600e 02 with no problems, i attach a photo of his so you can make a visual check that you have the correct tank.
Attached Thumbnails
Acerbis tank-tank.jpg

Reply With Quote
  #5
Old 25 Sep 2011
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 4,473
Mine didn't kock or wobble either..

Are you sure you haven't knocked off the rubbers on the frame which it slots onto. If I remember correctly.

Does it have a brace bar at the bottom too ???
__________________
www.TouringTed.com
1994 XR650L
2001 NX650 Dominator.

BMW Dealer Technician
Welder/Fabricator

Ushuaia - Colombia 2007/8
UK- South Africa 2010/11
India 2012
Yukon 2012
S.E Asia 2014
U.K - Magadan 2015
Reply With Quote
  #6
Old 25 Sep 2011
Registered Users
Veteran HUBBer

Join Date: Nov 2009
Location: christchurch newzealand
Posts: 384
The rubbers are on and the brace across the bottom is fitted and its now full of fuel and seems quite stable now but I might make a support bracket to bolt it to the frame for added security.......
Reply With Quote
  #7
Old 26 Sep 2011
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 4,473
Quote:
Originally Posted by kenymact View Post
The rubbers are on and the brace across the bottom is fitted and its now full of fuel and seems quite stable now but I might make a support bracket to bolt it to the frame for added security.......
I wouldn't worry. These tanks are pretty flexible. Mine took many a bounce and a 70mph smash with no damage but some gravel rash.
__________________
www.TouringTed.com
1994 XR650L
2001 NX650 Dominator.

BMW Dealer Technician
Welder/Fabricator

Ushuaia - Colombia 2007/8
UK- South Africa 2010/11
India 2012
Yukon 2012
S.E Asia 2014
U.K - Magadan 2015
Reply With Quote
  #8
Old 11 Oct 2011
Registered Users
Veteran HUBBer

Join Date: Oct 2009
Location: derbyshire
Posts: 101
Quote:
Originally Posted by Andysr6 View Post
Hi, fitted one to my sons xt600e 02 with no problems, i attach a photo of his so you can make a visual check that you have the correct tank.

I also have one on my '03 XT600e and have found no problems. Make sure you have the bottom brace on though, without it the tank can move about a bit.

Dan
Reply With Quote
  #9
Old 25 Feb 2014
Contributing Member
HUBB regular

Join Date: Aug 2010
Posts: 22
Hi, I realise this is an old thread but hopefully you guys can help me out.

I've managed to get hold of a 2nd hand acerbis tank for my 2002 xt600e, but it hasn't come with any fitting kit.

Do you know where I can get hold of the bracing bar? Also will the tank fit the standard mounts or do I need other bits?

Is there a fuel line coupling I need for both taps?

Thanks.
Reply With Quote
  #10
Old 25 Feb 2014
Registered Users
Veteran HUBBer

Join Date: Nov 2012
Location: London
Posts: 221
I have a brace bar somewhere in my kit off my bike I left in Mongolia, you can have it if you like?

I'm in london, so if you can get here. Let me know and I'll dig it out...
Reply With Quote
  #11
Old 25 Feb 2014
Contributing Member
HUBB regular

Join Date: Aug 2010
Posts: 22
Quote:
Originally Posted by Rfothy View Post
I have a brace bar somewhere in my kit off my bike I left in Mongolia, you can have it if you like?

I'm in london, so if you can get here. Let me know and I'll dig it out...
That's great. Thanks. Have PM'd you.
Reply With Quote
  #12
Old 26 Feb 2014
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,069
It mounts just like the stock tank. You need a "T" or ""Y" piece to gather the 2 fuellines into one, so you can use both petcocks.

The bracing bar is nothing special, and is just a flat piece of steel with two holes in it, so nothing fancy.
Reply With Quote
  #13
Old 26 Feb 2014
Contributing Member
HUBB regular

Join Date: Aug 2010
Posts: 22
Quote:
Originally Posted by Jens Eskildsen View Post
It mounts just like the stock tank. You need a "T" or ""Y" piece to gather the 2 fuellines into one, so you can use both petcocks.

The bracing bar is nothing special, and is just a flat piece of steel with two holes in it, so nothing fancy.
Thanks Jens. That's really useful information.
Reply With Quote
  #14
Old 25 Mar 2014
Little Dom's Avatar
Registered Users
New on the HUBB

Join Date: Jan 2008
Location: South England
Posts: 13
Acerbis tank taps

On the same subject of the xt600 Acerbis tank - has any one else had problems with the taps slowly seeping air in to the fuel lines?

I say "air" in rather than "leaking" because its such a small amount of fuel coming out that it evaporates before it can form a drip but given long enough there is so much air in the line it cuts off the supply!

I took apart the taps, polished the mating surface to a mirror finish, filled them with a thick fuel lube and RTV sealed the joint between the tank and the tap....... still happening!

Other info - tank is full and the fuel lines are new (twice - that was my first thought!)

I'm guessing/hoping this is a feature rather than a fault?
__________________
"an eye for an eye" - we will all be blind!
(Make tea not war)
Reply With Quote
  #15
Old 25 Mar 2014
Registered Users
Veteran HUBBer

Join Date: Feb 2010
Location: Border Ranges Northern NSW, Australia
Posts: 760
Well it must be common problem on Acerbis tanks as Dave Lambeth sells these.



And this type.



Mezo.
__________________
http://www.tenere.co.uk/
Reply With Quote
