  #16
Old 2 Feb 2008
Registered Users
Veteran HUBBer

Join Date: Feb 2007
Posts: 286
yes exhaust is part of the frame but for standard rider, no offroad and no overload you can easily go without strut. I'm going without from one year...
Reply With Quote
  #17
Old 2 Feb 2008
Registered Users
HUBB regular

Join Date: Jun 2007
Location: Finland
Posts: 25
Youre right Martyn, I hadnt thought about that because Ive seen pics with a slip on exhaust and no strut there. I think it could start to bend if I'd drive with much overload. Im gonna think something to fill the gap there, so I dont need to worry.

By the way, here's a video I just put on youtube, where you can hear what the sound is like with this muffler.
YouTube - Yamaha XT600e 1993 with muffler from kawasaki z750 -2004

Last edited by Ilpoj; 2 Feb 2008 at 21:39. Reason: Adding a link
Reply With Quote
  #18
Old 4 Mar 2008
Registered Users
HUBB regular

Join Date: Feb 2007
Location: Derbyshire
Posts: 20
Well got one on
I have used 2 inch OD dairy quality SS tube thinwalled - the exhaust gasket seal is a easy fit so I loaded it then slit the tube so it a clamp fit. The can was a race pipe off a mate for free, he had it on a gpz 600 the center was straight through so I made a center tube that just fit 2 inch down the inside of the perforated can inner capped that off drilled a 1 inch hole and inserted and welded a 1 inch OD thinwalled tube I capped that off and drilled 6 1/4 inch holes in it to let the gasses out. The can itself is only 4 inch diameter
The result is a only slightley noisier bike that has a better responce to a twist of the wrist,
I am very happy with the result at mo, off to try again to make double sure.
Just as a extra, whilst messin about with the exaust ( original) I found that drillind 6 1/4 inch holes in the end made it work nicer and only sounded a tadge noisier, see pic

HTHY
Mick
Attached Thumbnails

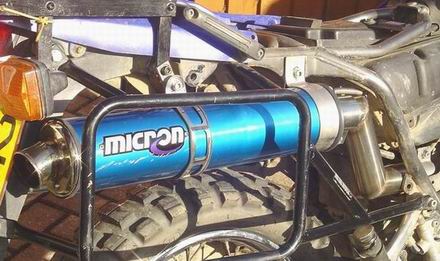

Swapping Exhaust Advice-xt-2-ex.jpg

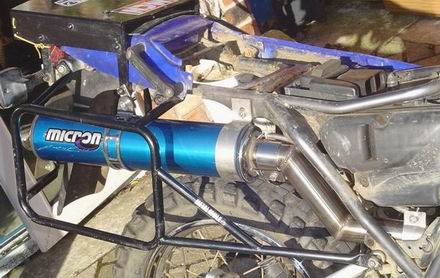

Swapping Exhaust Advice-ex-3-xt.jpg

Swapping Exhaust Advice-ex-1-xt.jpg

__________________
Cant leave a trail for others to follow by sitting on yer arse
Reply With Quote
  #19
Old 4 Mar 2008
Ten660's Avatar
Registered Users
HUBB regular

Join Date: Aug 2007
Location: Oswestry
Posts: 75
If the exhaust port spacings are the same as an Xtz660 Ten then you could look out for an exhaust from an Mz Mastiff.

Stainless throughout,fits nicely under 660 panels,and gives a nice sound without being that much louder.

May take a bit of finding,but thats what is Ebay is for! Picked a full system up for £45 off a stolen/recovered bike.

Andy
Reply With Quote
