Spark Plug Cap for 34L

Hi, I need to get a spark plug cap for a 34L but didn't realise til I went looking what a variety there was. Some have 5 Ohm and others 10 Ohm resistors. Also, 10, 12 and 14mm diameter plugs. Does anyone know what I should be going for or does it even matter? Thanks in advance.
Reply With Quote
  #2
Old 7 Oct 2013
Registered Users
New on the HUBB

Join Date: Apr 2003
Location: UK
Posts: 10
34L Stark Plug Cap

Preachan

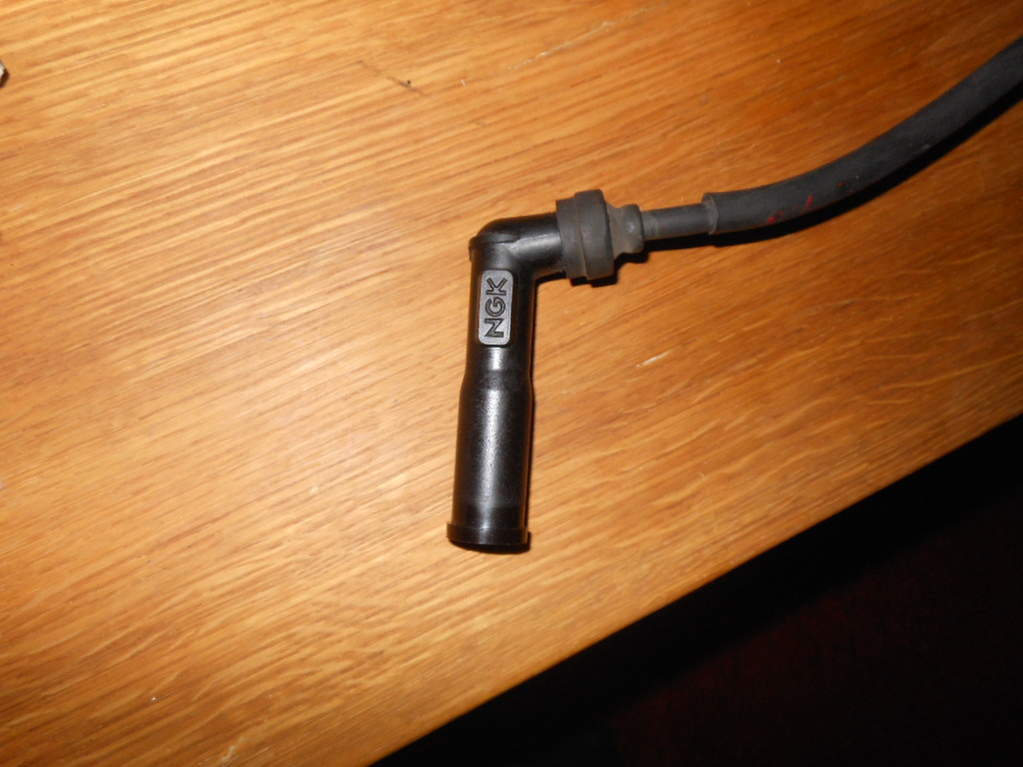

The ohm's has no bearing on the cap, however you do need to consider the length and shape of the cap as the plug is deep inside the head and requires a cranked end to clear the frame. A part search should come up with an ID number, the pic attached is what you are looking for.

Ian,
Attached Thumbnails
Spark Plug Cap for 34L-dscn1514.jpg

Reply With Quote
  #3
Old 7 Oct 2013
Contributing Member
HUBB regular

Join Date: Oct 2013
Location: Ireland
Posts: 50
Thanks for that Ian, just out of curiosity what are the different resistor ratings for?
Reply With Quote
  #4
Old 7 Oct 2013
Registered Users
Veteran HUBBer

Join Date: Feb 2010
Location: Border Ranges Northern NSW, Australia
Posts: 754
Well just by chance i have the very thing you looking for sitting on my desk, its for a 34L & i bought it from KEDO.

Part # XD05F

Mezo.
__________________
http://www.tenere.co.uk/
Reply With Quote
  #5
Old 8 Oct 2013
Registered Users
New on the HUBB

Join Date: Apr 2003
Location: UK
Posts: 10
Ohm's

Preachan,

The ohms rating is the resistance in the pick-up and secondary coil. The coil is best imagined as a gate that only opens when enough electrical voltage is behind it, the arc required to reliably jump the gap on the spark plug requires 28-32,000 volts, the bikes electrical system only being 12 volts the coils do the conversion between the two voltages. Regardless of the electrical system the end result arriving at the suppressor cap / spark plug is the same hence has no bearing on the cap required.

Ian
Reply With Quote
  #6
Old 8 Oct 2013
Registered Users
Veteran HUBBer

Join Date: Apr 2005
Location: Oxford UK
Posts: 1,009
The resistance is there to minimise electrical interference - originally to your neighbour's telly but more recently to the other electrical bits on your bike / car.

You can put the resistance in your ht lead, the plug cap or in the plug itself but stick to just one of them (or none if you're not bothered about tv squiggles).

Resistor caps + resistor plugs = an engine that may not start - ask me how I know.
Reply With Quote
  #7
Old 8 Oct 2013
Registered Users
New on the HUBB

Join Date: Apr 2003
Location: UK
Posts: 10
Suppressor Cap

backofbeyond,

I believe we are talking at crossed purposes, preachan was asking if the ohms rating of the pick up and secondary coil has any bearing on the type of suppressor cap he needs as there are differing ohms ratings for different XT 600 models. I believe what you are talking about is the resistance rating of the plug and cap for as you correctly point out to eliminate electrical interference to other electrical devices, but I don't believe that was the question.

Ian
Reply With Quote
  #8
Old 9 Oct 2013
Contributing Member
HUBB regular

Join Date: Oct 2013
Location: Ireland
Posts: 50
Thanks for all the replies, I was actually originally referring to just the resistor in the spark plug cap but I'm currently trying to get to grips with the electrical system as a whole so all information welcome. More threads with electrical questions to follow!
Reply With Quote
  #9
Old 9 Oct 2013
Registered Users
Veteran HUBBer

Join Date: Feb 2010
Location: Border Ranges Northern NSW, Australia
Posts: 754
Quote:
Originally Posted by preachan View Post
More threads with electrical questions to follow
The search engine works well & most questions have already been asked & answered before, or use Google to ask the question (works well).

Mezo.
__________________
http://www.tenere.co.uk/
Reply With Quote
