Am I missing a bearing? 1VJ rear wheel

Got a new inner tube fitted today at a reliable tyre place locally, but stupidly handed them the wheel with the sprocket, cush drive and drum brake attached, which they handed back to me in a bag with the wheel when they finished . Went to refit the wheel , cleaning everything before it went in, (so tyre place closed by this time) and I appear to be missing the bearings, of all things, on the side where the drum brake sits. I can't find an exploded view anywhere. And I don't understand how a bearing could just fall out (the centre spacer fell out ) . Anyone know if there should be a bearing or spacer there? Anyone got an exploded view they can point me at?

Thanks
Kirst
__________________
Does my bum look big on this bike?

Last edited by Kirst; 1 Sep 2010 at 20:16. Reason: Spelling
Reply With Quote
  #2
Old 1 Sep 2010
Registered Users
HUBB regular

Join Date: May 2007
Location: Victoria, Australia
Posts: 66

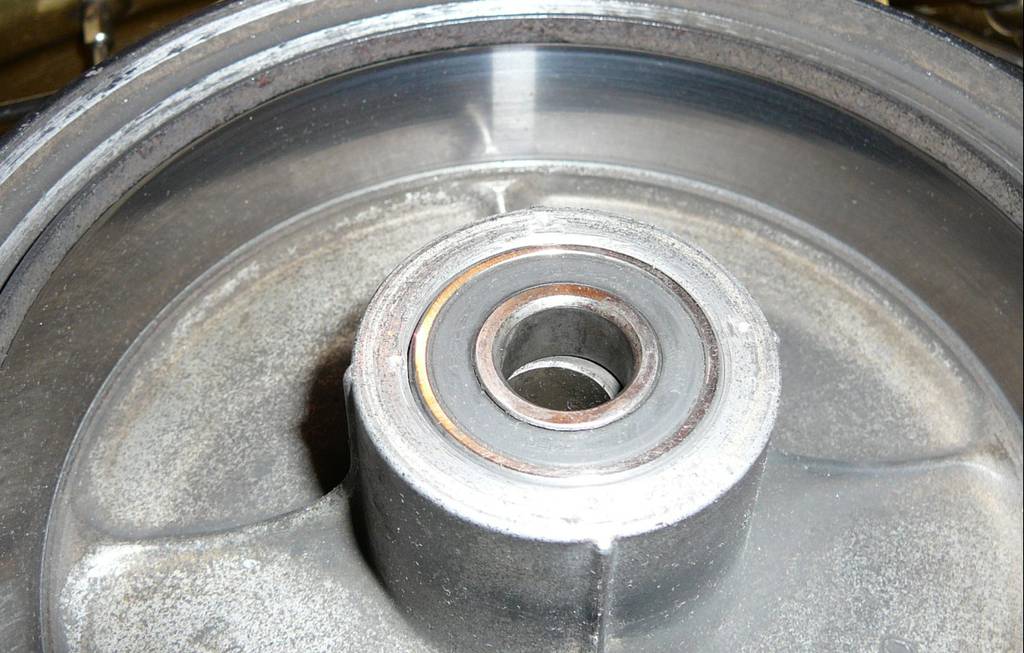

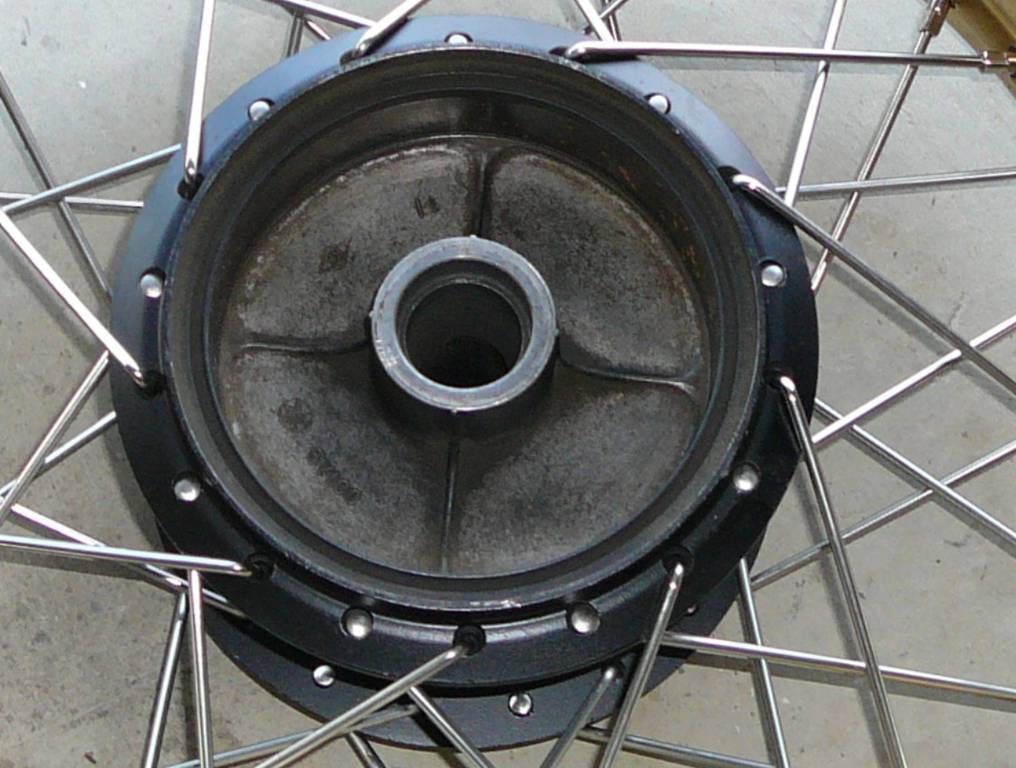

Hi Kirst, It sounds like you are missing the bearing.Not long ago I had the rear wheel re-spoked on my 600Z Tenere. The bearing was a little loose and fell out. It didn't seem that loose at any point when I checked for play in the hub. In the end I had to have the hub sleved and a new bearing fitted at the local bike shop (he's pretty exceptional at engineering jobs). If you look closely at the picture with the bearing in you can actually see a gap.

Hope this helps.

Chrispy
Attached Thumbnails
Am I missing a bearing? 1VJ rear wheel-with.jpg

Am I missing a bearing? 1VJ rear wheel-without.jpg

Reply With Quote
  #3
Old 1 Sep 2010
Registered Users
New on the HUBB

Join Date: Dec 2007
Location: Wirral
Posts: 16
Yup, 's missing alright! Thanks ever so much, Chrispy, I now have a plan of action for tomorrow.
__________________
Does my bum look big on this bike?
Reply With Quote
  #4
Old 3 Sep 2010
Registered Users
HUBB regular

Join Date: Sep 2006
Location: Berry, NSW, Australia
Posts: 52
How did you get on with the bearing? I got an old set of wheels for my 1VJ and had the same problem when I tried to put new beearings. I used some loctite 660 which is a green gel and it worked fine, they are still there after a few thousand km.

Regards, Dave
Reply With Quote
  #5
Old 3 Sep 2010
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,051
I've seen people hitting the surface the bearing meets with a hammer and a screwdriver to make some small rough "craters" and bums. The bearing would then have som stuff to grip.
Reply With Quote
  #6
Old 3 Sep 2010
oothef's Avatar
Registered Users
Veteran HUBBer

Join Date: Feb 2010
Location: york
Posts: 265
The trouble is, if the bearing has enlarged the housing, burrs and bruises aren't likely to last long, locktight's better but a sleeve's the best.
__________________
Anything can happen in the next half hour
Reply With Quote
  #7
Old 3 Sep 2010
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,051
The scenerio I talk about was in combination with loctire, sorry I missed that. It seems like it work.

No question about the sleeve being the best option, short of a new hub =)
