2002 XT600e starting woes - grrrrr

Hey guys and girls.

(I'll preface this with saying I have very limited mechanical knowledge, and definitely no electric start knowledge).

Long story short, bike was running fine. No real problems.. I fitted a rear rack and to do so had to disconnect the rear indicators. So I put everything back in place, tested indicators, worked fine.. then pressed e-start and 'click', tried again 'click'... tried again and it started.

I say 'click', the sound wasn't coming from the engine, was something in the starting assembly.

From here, I tried switching the indicator connections incase I'd plugged them in the wrong sockets and restarting and got the same hit or miss 'click' or start.. .prob started 1 in 5 times.

Kept experimenting trying to start and it started making a load of new weird noises. Now it won't start at all.

Here is an audio recording of all the grunts it is making:
http://wtrns.fr/4Enag7CDNYFCsA (3mb file)

I charged batt over night and according to charger the batt is full. But still won't start. The lights do turn on.

IT IS DRIVING ME CRAZY!! haha.

Does anyone have any suggestions? I'm not sure if I wired the indicators wrong which cause a problem somehow, or if its just coincidence.

A friend of mine thought the batt was fried, failing that the starter motor. Like I said, the lights turn on. So can I eliminate a flat or screwed battery?

I'd trade this switch for a kickstart any day!

Thanks in advance.
Reply With Quote
  #2
Old 14 Oct 2012
djorob's Avatar
Seek and thou shalt find.
Veteran HUBBer

Join Date: Feb 2006
Location: Midlands/UK
Posts: 231
Hi.
Listened to your recording.
Can you find your solenoid and bridge the two thick cables that are bolted to it with an old spanner or something to make a connection and see if it still refuses to turn over. You're just basically doing the job of the solenoid really.
If it's the same check all the earth connections and battery connections, remove and clean and make sure they are making a nice clean contact.
Are you sure your battery is ok!
Most car shops can do a high rate discharge test for you to check it!
Let me know how you get on mate.
All the best. Dave.
Reply With Quote
  #3
Old 14 Oct 2012
Registered Users
HUBB regular

Join Date: May 2012
Posts: 64
Thanks a lot for your input and for checking the audio file.

I just checked the battery with a multimeter and it said 12v, so between that and the green light on the charger I 'presume' the batt is doing its job.

The odd thing is, it kind of got worse. Which makes me wonder if its some kind of part that wears, like I said, at first it was starting 1 in 5 times, and that gradually got less and now it just makes weird noises!

Not sure where to find the solenoid, will check manual and have a google.

Will have a go at removing, cleaning and reconnecting batt too.

Thanks again for input!
Reply With Quote
  #4
Old 14 Oct 2012
Registered Users
Veteran HUBBer

Join Date: May 2012
Location: Lithuania
Posts: 156
I would support djorob on this opinion.

To me it sounds most likely like a weak battery. It could show 12V, but be still too weak in amps (?). Or the contacts can be oxidized, but you would see that right away.

Solenoid could be also faulty, you would see that after checking like djorob suggested - with a wrench or something else, to shorten the solenoid's contacts (to do it's job). If that doesn't help, I guess you should try jumper cables and crank if from your car's battery.

My guess is that it's the battery, I would give 99% that it's too old/flat/dead/etc.

Keep us posted and good luck
Reply With Quote
  #5
Old 14 Oct 2012
Registered Users
HUBB regular

Join Date: May 2012
Posts: 64
Rob..

Did a bit of googling and found solenoid..

When I tried, I got some sparks and a kind of faint attempt at turning over the motor. Almost like it wanted to run, but was far too much of a weakling to fire into life.

What should happen? Should you be able to start just from link the two with a spanner?

I was just pressing the spanner onto the two connectors, should I have disconnected the them and don this directly from cable to cable?

Sorry for the noob questions and thanks again.

God bless the internet. ha
Reply With Quote
  #6
Old 14 Oct 2012
Registered Users
Veteran HUBBer

Join Date: May 2012
Location: Lithuania
Posts: 156
Doesn't matter if these cables are connected to the solenoid or not.

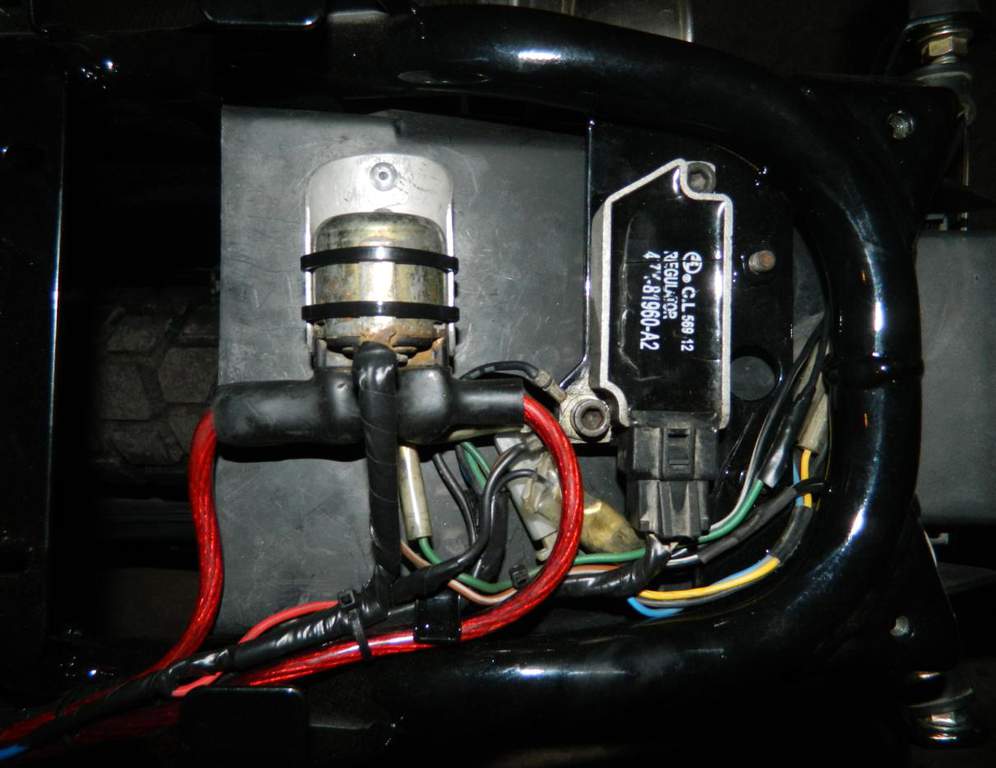

That's my solenoid http://www.horizonsunlimited.com/hub...n-dscn7322.jpg
If I would shorten these two red cables (connectors) with a spanner, it would crank over.

Get another battery and try to crank the bike with jumper cables connected to your bike's battery. I am 99% guaranteed your bike will start.
Reply With Quote
  #7
Old 14 Oct 2012
Registered Users
HUBB regular

Join Date: May 2012
Posts: 64
Thanks Zergman. Will try the car option too.

Worst part is I'm right on the verge of leaving for a long trip. I guess if it was going to happen, better to happen now. But still very frustrating, supposed to be leaving later in the week!

I'm wary of ordering parts to fix incase they don't fix the problem, but I guess a new battery couldn't do any harm for safety regardless.

One more question - if I keep trying to start it too much, is there a danger I can fry the starter motor or anything?

I'm now getting a kind of buzzing sound which is worrying.

YIKES!
Reply With Quote
  #8
Old 14 Oct 2012
Registered Users
Veteran HUBBer

Join Date: May 2012
Location: Lithuania
Posts: 156
But don't use a battery that's too powerful, it might damage your solenoid or starter motor. For example diesel car or tractor battery might be too powerful. Best would be another bike's battery or gas powered car battery with lower amperage.

Before leaving for a long trip I would suggest you to change the battery anyway, because you have e-start only. If the battery dies, you have to push your bike God knows how far...

Another solenoid for a long trip would not hurt too, just in case... But I don't think it's a must-have.

If you keep trying you will simply murder your battery completely. But I guess it's dead anyway. I heard in the recording that the solenoid is not always keeping the connection, and that is probably because of low power in the battery. The solenoid is an electromagnet, you give it a little current, and the magnet connects two big wires. There's not enough power to keep the electromagnet connected.
Reply With Quote
  #9
Old 14 Oct 2012
Registered Users
HUBB regular

Join Date: May 2012
Posts: 64
Thanks again Zerg.. new batt is on order. Busy all day tomorrow, batt should arrive on Tues so will have another go with fresh batt.

You think I could have caused any damage to starter motor from trying to start it so many times?
Reply With Quote
  #10
Old 14 Oct 2012
djorob's Avatar
Seek and thou shalt find.
Veteran HUBBer

Join Date: Feb 2006
Location: Midlands/UK
Posts: 231
Hi.
From what you've said the battery does seem suspect.
A good battery at full charge should show 13.2v (2.2v per cell) so your voltage seems low.
If you can jump to a similar Amp-Hour battery this will show it up.
Is the bike battery a sealed one?
If not have a look at the electrolyte levels.
If your new batt or jumping doesn't change things then look at connections and starter motor next.

With the info you've given it does point to the battery.

Odyssey batteries have a rep for good perfofmance/life.

All the best mate.
Dave.
Reply With Quote
  #11
Old 14 Oct 2012
Registered Users
HUBB regular

Join Date: May 2012
Posts: 64
Thanks Rob!

I've ordered a batt already, so will fit it on Tues and fingers crossed that fixes it. Otherwise sounds like a whole other can of worms needs opening.

Went for this one from wemoto:
Yamaha XT 600 E 99-03 Battery Motobatt Sealed High Torque Parts at Wemoto - The UK's No.1 On-Line Motorcycle Parts Retailer

I just found it odd the way what ever is happening wasn't consistent, it almost regressed with each try and now its making a totally new noise than it was at the start.

Failing that will have to find a mechanic, which sounds heinously expensive.
Reply With Quote
  #12
Old 15 Oct 2012
Registered Users
Veteran HUBBer

Join Date: Nov 2009
Location: christchurch newzealand
Posts: 382
I have those batteries in all my bikes...excellent....
Reply With Quote
  #13
Old 15 Oct 2012
Registered Users
HUBB regular

Join Date: Jun 2012
Location: UK
Posts: 59
Hi, Fraser

Yeah, that's what I wouuld expect from a dodgy battery: it regressed with each try because the already-insufficient power is depleting further. Also, if you're UK-based, it's just starting to get a tad chilly, which will also affect your battery. It may have only just been 'getting by' in recent weeks but is now really struggling because the ambient temperature is significantly lower and it may be beyond its serviceable life, anyway.

A motorbike-battery 'smart charger' may be worth getting: I had a similar problem once, bought one of those Oxford Oxymisers and coaxed the battery back to life (even though the Oxymiser initially indicated that the battery was shot). I used that battery - which I'd originally presumed to be knackered - for a couple of years, after that.

Quote:
Originally Posted by fraserbyrne View Post
I just found it odd the way what ever is happening wasn't consistent, it almost regressed with each try and now its making a totally new noise than it was at the start.
Reply With Quote
  #14
Old 15 Oct 2012
Registered Users
Veteran HUBBer

Join Date: May 2012
Location: Lithuania
Posts: 156
Quote:
Originally Posted by fraserbyrne View Post
You think I could have caused any damage to starter motor from trying to start it so many times?
I don't think so.
The solenoid cannot hold connection, and disconnects. If so would happen, and only IF, that you would (for example) connect the two solenoid terminals by, let's say again, a wrench, and hold it too long, it might be bad for the motor. Current would be too low to turn the motor, but might be just enough to heat the starter motor's coils and maybe shorten it.

Keep us posted
Reply With Quote
  #15
Old 15 Oct 2012
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 4,281
Bump start the bike.... If it starts, then it's most likely your starter relay (solonoid).

Your starter motor is also JUST A MOTOR. You could take some jump leads from any 12V battery and just get it spinning that way.

The clicking sound is almost certainly your starter relay.
