Quote:
Originally Posted by Singaporedream View Post
Hi Porompp: what is circlips?

Hi Ted: the front cylinder head is much cleaner than the rear. is this common? i had cleaned the carbon on the piston head, cylinder head. once i recived the mail from singapore, gary and i will bring the cylinders to a shop in austin and they will rebore the cylinder, fix and aline the valves stem, seals and guides. i hope the piston ring set comes with the piston ring clip.

this is what i ordered:


1) 22201-MJ1-761 Clutch friction disc = 7 pc
2) 22321-MV1-000 Clutch plate = 6 pc
3) 11394-MV1-850 Clutch cover gasket = 1 pc
4) 13012-MV1-305 Piston Ring set 0.25 = 2 set
5) 12251-MV1-004 Cylinder head gasket = 2 pc
6) 14711-MV1-000 Inlet valve = 4 pc
7) 14721-MR1-000 Exhaust valve = 2 pc
8) 12231-MF5-305 Inlet valve guide = 4 pc
9) 12241-MF5-315 Exhaust valve guide = 2 pc
10) 12208-413-003 Inlet valve seal = 4 pc
11) 12209-413-003 Exhaust valve seal = 2 pc
12) 11395-MV1-850 Magneto cover gasket = 1 pc

as for the clutch, i would follow Chan's advice:

Normally the friction plates wears off faster & it’s alrite just to replace these. However there is no measurement listed for wear limits of metal plates, & Honda recommends replacement of clutch disc as a set, so I would recommend so, since they don’t cost that much anyway.

Honda service manual do not have service limit specified for the clutch centre & pressure plate. They just remarked to” check for excessive wear”. If these needs replacement, I can look for it from other sources. Otherwise it got to be ordered & delivery time will depends on air freight (extra cost) or standard sea freight (too long).


The carbon on the pistons is built up from the burning of oil. The rear cylinder must of been leaking oil quite badly..

The circlips are what holds the pin on the piston. The should be replaced everytime but its not the end of the world if you dont (but only if they are not defromed from removing them). They WILL NOT come with the piston rings. They have to be ordered seperately.
__________________
www.TouringTed.com
1994 XR650L
2001 NX650 Dominator.

BMW Dealer Technician
Welder/Fabricator

Ushuaia - Colombia 2007/8
UK- South Africa 2010/11
India 2012
Yukon 2012
S.E Asia 2014
U.K - Magadan 2015
Reply With Quote
  #47
Old 12 Jul 2009
Gold Member
Veteran HUBBer

Join Date: Dec 2007
Location: Singapore
Posts: 154

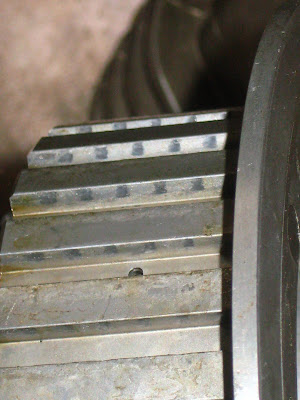

cleaning the gasket... getting ready for the parts.

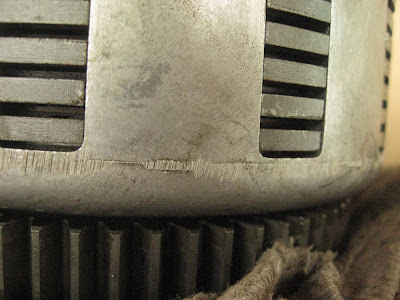

i noticed that there's some scratches here. is it ok?


what about this? i think it's normal.
Reply With Quote
  #48
Old 12 Jul 2009
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 4,470
Quote:
Originally Posted by Singaporedream View Post
cleaning the gasket... getting ready for the parts.


i noticed that there's some scratches here. is it ok?


what about this? i think it's normal.
Those scratches don't look like they were done while the bike is running. They are in the wrong direction to start with...

The other marks are normal on a high mileage clutch.. As long as they are smooth ??
__________________
www.TouringTed.com
1994 XR650L
2001 NX650 Dominator.

BMW Dealer Technician
Welder/Fabricator

Ushuaia - Colombia 2007/8
UK- South Africa 2010/11
India 2012
Yukon 2012
S.E Asia 2014
U.K - Magadan 2015
Reply With Quote
  #49
Old 14 Jul 2009
Gold Member
Veteran HUBBer

Join Date: Dec 2007
Location: Singapore
Posts: 154
Those scratches don't look like they were done while the bike is running. They are in the wrong direction to start with...

The other marks are normal on a high mileage clutch.. As long as they are smooth ??

Hi Ted! the second picture with the scratches looks fresh but im sure that when gary and i took out the clutch, we didnt 'scratch' it. what do u think might have cause this scratch marks?

the 3rd picture: the marks are smooth...so thats a good sign?
Reply With Quote
  #50
Old 14 Jul 2009
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 4,470
Quote:
Originally Posted by Singaporedream View Post
Those scratches don't look like they were done while the bike is running. They are in the wrong direction to start with...

The other marks are normal on a high mileage clutch.. As long as they are smooth ??

Hi Ted! the second picture with the scratches looks fresh but im sure that when gary and i took out the clutch, we didnt 'scratch' it. what do u think might have cause this scratch marks?

the 3rd picture: the marks are smooth...so thats a good sign?

I wouldnt worry about them. They look like they are scratched from someone in the past installing or rolling around on a garage floor etc.. They won't do any harm..
__________________
www.TouringTed.com
1994 XR650L
2001 NX650 Dominator.

BMW Dealer Technician
Welder/Fabricator

Ushuaia - Colombia 2007/8
UK- South Africa 2010/11
India 2012
Yukon 2012
S.E Asia 2014
U.K - Magadan 2015
Reply With Quote
  #51
Old 15 Jul 2009
Gold Member
Veteran HUBBer

Join Date: Dec 2007
Location: Singapore
Posts: 154
hi ted and all, the piston rings, valve stems+seals+guides, gaskets and clutch plates+disc has arrived. i had sent the valve set and the cylinder head to a workshop for alignment and installation.

will update on the good news!
Reply With Quote
  #52
Old 16 Jul 2009
Gold Member
Veteran HUBBer

Join Date: Dec 2007
Location: Singapore
Posts: 154
remove and replace valve guides
hone guides to size
check new valves for run-out
machine valve seats using spec's from repair manual
check spring heights
assemble with new valves and seals.
cost: US$250-350
duration:3 days+

meanwhile, gary help me to hone the cylinder to fit the size of the new 0.25 piston ring that we ordered. after a few minute of work, we find that the 0.25 ring is too tight for the current cylinder. a few method we could get the piston ring fixed:

1) continue to hone the cylinder and take out more materials to fit the 0.25 rings and file the end of the rings to specification.
2) order a set of OEM (original) rings from singapore again. (got to wait)
3) purchase a set of OEM rings here in usa but the problem is:

can u advise me if the shadow 750 piston ring fits into my bike?
my VIN number is JH2RD07A9WM302728.

a kind soul from HUBB left a message for me:

Hi!
If you have covered such a high milage with a faulty air filter, probably you will need some new rings...it is a simple task, you will just have to deglaze the bore and fit some new rings. When you do that , just replace the valve seals and this should solve your burning oil problems. You can use Honda Shadow 750 rings and valve seals, since both models share those engine components ....and Shadow 750 was widely available in USA market...
It is :

13011MV1305 for the rings
12208-413-003 for intake valve seals
12209-413-003 for exhaust valve seal
World of Powersports w/ MC MART's 2000 Honda Street Bike VT750C SHADOW Parts Finder this is Honda Shadow in States...
Motorbike components for Honda XRV-750-W (G) this is Africa Twin in Europe...

what is your advice folks?

goh
Reply With Quote
  #53
Old 16 Jul 2009
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 4,470
Quote:
Originally Posted by Singaporedream View Post
remove and replace valve guides
hone guides to size
check new valves for run-out
machine valve seats using spec's from repair manual
check spring heights
assemble with new valves and seals.
cost: US$250-350
duration:3 days+

meanwhile, gary help me to hone the cylinder to fit the size of the new 0.25 piston ring that we ordered. after a few minute of work, we find that the 0.25 ring is too tight for the current cylinder. a few method we could get the piston ring fixed:

1) continue to hone the cylinder and take out more materials to fit the 0.25 rings and file the end of the rings to specification.
2) order a set of OEM (original) rings from singapore again. (got to wait)
3) purchase a set of OEM rings here in usa but the problem is:

can u advise me if the shadow 750 piston ring fits into my bike?
my VIN number is JH2RD07A9WM302728.

a kind soul from HUBB left a message for me:

Hi!
If you have covered such a high milage with a faulty air filter, probably you will need some new rings...it is a simple task, you will just have to deglaze the bore and fit some new rings. When you do that , just replace the valve seals and this should solve your burning oil problems. You can use Honda Shadow 750 rings and valve seals, since both models share those engine components ....and Shadow 750 was widely available in USA market...
It is :

13011MV1305 for the rings
12208-413-003 for intake valve seals
12209-413-003 for exhaust valve seal
World of Powersports w/ MC MART's 2000 Honda Street Bike VT750C SHADOW Parts Finder this is Honda Shadow in States...
Motorbike components for Honda XRV-750-W (G) this is Africa Twin in Europe...

what is your advice folks?

goh
I would get the original size Honda rings... Honing the bore to fit oversize rings is a bit crazy. You would actually need the cylinder PROFESSIONALLY bored out to fit the rings. Not just a guy with a hone tool on his power drill.

If the Honda Shadow shares the same cylinder size and piston, the original rings from that will work although I have no experience of this bike.

I say again, do not hone down and cut rings to fit the cylinder.. This is not good engineering.

David Silver Spares - PARTS

This guy does Honda parts. Maybe cheaper and faster to the USA than Singapore. ????
__________________
www.TouringTed.com
1994 XR650L
2001 NX650 Dominator.

BMW Dealer Technician
Welder/Fabricator

Ushuaia - Colombia 2007/8
UK- South Africa 2010/11
India 2012
Yukon 2012
S.E Asia 2014
U.K - Magadan 2015
Reply With Quote
  #54
Old 16 Jul 2009
Gold Member
Veteran HUBBer

Join Date: Dec 2007
Location: Singapore
Posts: 154
thanks ted for that warning, we almost wanted to hone the whole cylinder down.

the issue is how do can we get to know if shadow 750 share the same piston ring with xrv750?

pls advise.

goh
Reply With Quote
  #55
Old 16 Jul 2009
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 4,470
Quote:
Originally Posted by Singaporedream View Post
thanks ted for that warning, we almost wanted to hone the whole cylinder down.

the issue is how do can we get to know if shadow 750 share the same piston ring with xrv750?

pls advise.

goh
They will probably share the same part number.
__________________
www.TouringTed.com
1994 XR650L
2001 NX650 Dominator.

BMW Dealer Technician
Welder/Fabricator

Ushuaia - Colombia 2007/8
UK- South Africa 2010/11
India 2012
Yukon 2012
S.E Asia 2014
U.K - Magadan 2015
Reply With Quote
  #56
Old 16 Jul 2009
Contributing Member
Veteran HUBBer

Join Date: Apr 2003
Location: Gloucester, England
Posts: 431
Quote:
Originally Posted by tedmagnum
They will probably share the same part number.
Boom boom!
Reply With Quote
  #57
Old 16 Jul 2009
Gold Member
Veteran HUBBer

Join Date: Dec 2007
Location: Singapore
Posts: 154
Quote:
Originally Posted by tedmagnum View Post
They will probably share the same part number.

for the shadow that we going to order is:13011MBA305
for africa twin recommanded by prompp :13011MV1305

i think i gonna order it. US$43...get it by tomorrow 11am. gosh, US43!
Reply With Quote
  #58
Old 18 Jul 2009
Gold Member
Veteran HUBBer

Join Date: Dec 2007
Location: Singapore
Posts: 154
do u know what the F u are talking about?

Quote:
Originally Posted by Singaporedream View Post
for the shadow that we going to order is:13011MBA305
for africa twin recommanded by prompp :13011MV1305

i think i gonna order it. US$43...get it by tomorrow 11am. gosh, US43!
we got the shadow 750 rings. about US$100 including tax and it DO NOT FIT AFRICA TWIN!
MR PROMPP, I HOPE U KNOW WHAT U ARE TALKING ABOUT.

end up, we need to file the oversized piston ring abit on one end but it fits perfectly.

then, when installing the whole cylinder, the cam chain sprocket that needed to be aligned could not be. we tried it many many times but it is not aligned so we suspected it may be the chain elongation over time that it is not aligned. anyway we have the same 'not aligned' for the front and rear cylinder.

later gota test ride the bike. my fingernails are very dirty now..

keep u guys update.
Reply With Quote
  #59
Old 19 Jul 2009
Gold Member
Veteran HUBBer

Join Date: Dec 2007
Location: Singapore
Posts: 154
bike is done. had a hard 24miles hard run-in/break in.

will change engine oil and oil filter at mile 600.

rushing to rhode island from austin. got to b there at 25th july 09. will update on what had we done. thanks everyone!
Reply With Quote
  #60
Old 22 Jul 2009
Gold Member
Veteran HUBBer

Join Date: Dec 2007
Location: Singapore
Posts: 154





i opened up the rear cylinder today, found that the piston is cracked, cylinder head is damaged. new valves were broken.


i got the bike running,`after 130miles, it stopped. went to dave's house, i open the rear cylinder it became like that.

im lost now... kind soul pls help
Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 Registered Users and/or Members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Challenges with RD07 engine on around 4500 rpm praatika Honda Tech 3 8 Dec 2009 05:08
Namibia - camping, bookings, parks - annoying rules! JP Gaillard sub-Saharan Africa 7 15 Nov 2008 02:19
bloody annoying rattle bigbrummer Yamaha Tech 1 5 Oct 2005 00:25
For Sale: 43 L Tank for AfricaTwin RD07 madmarco TRAVEL Equipment for Sale / Wanted 4 17 May 2005 06:23
Air filter Africa Twin rd07 frnas Honda Tech 4 29 Apr 2003 14:40





NEW! HU 2015 Motorcycle Adventure Travel Calendar is now available! Get your copy now for some terrific travel inspiration!

HUGE, 11.5 x 16.5 inches, beautifully printed in Germany on top quality stock! Photos are the winning images from over 600 entries in the 9th Annual HU Photo Contest!

Horizons Unlimited 2015 Motorcycle Adventure Travel Calendar.

"The calendar is magnificent!"

"I just wanted to say how much I'm loving the new, larger calendar!"

We share the profit with the winning photographers. YOU could be in the HU Calendar too - enter here!


HU DVD Autumn Special!

Take 40% off Road Heroes Part 1 until October 31 only!

Road Heroes features tales of adventure, joy and sheer terror by veteran travellers Peter and Kay Forwood (193 countries two-up on a Harley); Dr. Greg Frazier (5 times RTW); Tiffany Coates (RTW solo female); and Rene Cormier (University of Gravel Roads).

The first in an exciting new series, Road Heroes features tales of adventure, joy and sheer terror by veteran travellers."Inspiring and hilarious!"

"I loved watching this DVD!"

"Lots of amazing stories and even more amazing photographs, it's great fun and very inspirational."

"Wonderful entertainment!"

Check it out at the HU Store! Remember to use Coupon Code 'HEROES' on your order when you checkout.


Renedian Adventures


Renedian Adventures

What others say about HU...

"I just wanted to say thanks for doing this and sharing so much with the rest of us." Dave, USA

"Your website is a mecca of valuable information and the DVD series is informative, entertaining, and inspiring! The new look of the website is very impressive, updated and catchy. Thank you so very much!" Jennifer, Canada

"...Great site. Keep up the good work." Murray and Carmen, Australia

"We just finished a 7 month 22,000+ mile scouting trip from Alaska to the bottom of Chile and I can't tell you how many times we referred to your site for help. From how to adjust your valves, to where to stay in the back country of Peru. Horizons Unlimited was a key player in our success. Motorcycle enthusiasts from around the world are in debt to your services." Alaska Riders

contest pic

10th Annual HU Travellers Photo Contest is on now! This is an opportunity for YOU to show us your best photos and win prizes!

NEW! HU 2014 Adventure Travel T-shirts! are now available in several colors! Be the first kid on your block to have them! New lower prices on synths!

HU 2014 T-shirts now in!

Check out the new Gildan Performance cotton-feel t-shirt - 100% poly, feels like soft cotton!


What turns you on to motorcycle travel?


Global Rescue, WORLDwide evacuation services for EVERYONE

Global Rescue is the premier provider of medical, security and evacuation services worldwide and is the only company that will come to you, wherever you are, and evacuate you to your home hospital of choice. Additionally, Global Rescue places no restrictions on country of citizenship - all nationalities are eligible to sign-up!


New to Horizons Unlimited?

New to motorcycle travelling? New to the HU site? Confused? Too many options? It's really very simple - just 4 easy steps!

Horizons Unlimited was founded in 1997 by Grant and Susan Johnson following their journey around the world on a BMW R80 G/S motorcycle.

Susan and Grant Johnson Read more about Grant & Susan's story

Membership - help keep us going!

Horizons Unlimited is not a big multi-national company, just two people who love motorcycle travel and have grown what started as a hobby in 1997 into a full time job (usually 8-10 hours per day and 7 days a week) and a labour of love. To keep it going and a roof over our heads, we run events (22 this year!); we sell inspirational and informative DVDs; we have a few selected advertisers; and we make a small amount from memberships.

You don't have to be a Member to come to an HU meeting, access the website, the HUBB or to receive the e-zine. What you get for your membership contribution is our sincere gratitude, good karma and knowing that you're helping to keep the motorcycle travel dream alive. Contributing Members and Gold Members do get additional features on the HUBB. Here's a list of all the Member benefits on the HUBB.


Books & DVDs

amazon

All the best travel books and videos listed and often reviewed on HU's famous Books page. Check it out and get great travel books from all over the world.


Motorcycle Express for shipping and insurance!

Motorcycle Express

MC Air Shipping, (uncrated) USA / Canada / Europe and other areas. Be sure to say "Horizons Unlimited" to get your $25 discount on Shipping!
Insurance - see: For foreigners traveling in US and Canada and for Americans and Canadians traveling in other countries, then mail it to MC Express and get your HU $15 discount!




All times are GMT +1. The time now is 03:09.
