Carbs To Injection

The Bing Carbs Can Be A Bit Fussy, And For That Reason I Was Thinking Is It Possible To Replace Them With The Oil Head Fuel Injection Set-up. I Beleive The Fuel Injection Automatically Compensates For Altitude.

Any Takers On This One........
Reply With Quote
  #2
Old 20 Oct 2009
Steve Pickford's Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2003
Location: Oxford, UK
Posts: 1,028
Could be done but it won't be easy. You'll have to fit all the relevant sensors plus a fuel pump to the airhead to make it work. You'll then be faced with the task of remapping the oilhead injection to suit the airheads needs. Sensors include Lambda probe in the exhaust Y-piece, air mass & density plus mating the fuel pump (external) to the injection system. You may also need to fit the oilhead ignition system (Hall Sensor) to trigger the fuel pump & injection. The ignition will also need to be re-calibrated to take account of the airheads different ignition requirements i.e. advance curve & rev limiter etc. Making the oilhead wiring harness fit or making one from scratch won't be an easy task.

You'd be better off off using an aftermarket combined injection & ignition system that's programmeable from a laptop.

Note that several oilhead owners have gone ditched the injection & reverted to carbs for simplicity. If you're running rich at altitude, it's easy to swap jets on an airhead......
__________________
My photos: www.possu.smugmug.com

Last edited by Steve Pickford; 23 Oct 2009 at 08:32.
Reply With Quote
  #3
Old 20 Oct 2009
Contributing Member
HUBB regular

Join Date: Mar 2006
Location: England
Posts: 37
I get your drift. I did not realise that some oil-heads have injection reliability problems.
Reply With Quote
  #4
Old 20 Oct 2009
Gold Member
Veteran HUBBer

Join Date: Mar 2007
Location: Montreal
Posts: 104
If I might add, it is not so much the injectors whose reliability is problematic but rather the associated components, specifically the fuel pump and the hall sensor.
__________________
Brian

www.2uprtw.com
Reply With Quote
  #5
Old 22 Oct 2009
Registered Users
Veteran HUBBer

Join Date: Oct 2002
Location: Stockholm - Sweden
Posts: 316
Yes.

Luftmeister used to have a kit.
Call Chris at CC Racing, SJ BMW Racing , he might be able to help you out.



It can be done and I have lately seen quite a few mentioning that it is more or less just to bolt on the oilhead kit. However... the airhead electrical capacity is not enough so one will have to enhance it...
Either you do as I have done:
http://www.webstruktur.com/svea/board/artik/bilgen.html
SVEAs FRÅGOR&SVAR: Bilgenerator på MC

Or you buy an aftermarket replacement kit:
BMW Motorcycle Aftermarket Alternators
Note:
- study the charts!
Please be aware that the airhead is mainly operated below 3000rpm and in city traffic is tends to be more around 2000rpm... compare this with the charts. My solution superceed this by far - I have 55-90A depending on installed alternator from the rev's I choose pulleys for. I have my bikes giving me full 70A (980W) at 1700rpm.

The answer to your question is: YES!
Counter question is: Why?...
Any slide/throttle carbs is better than the Bing CV. I have Dell'orto PHM 40, but you should not get so large carbs. 800cc should have 34mm and 1000cc should have 36-38 (RT vs RS). It is possible to go 2mm up or down - it affects where the torque response comes and have some effects on full throttle; smaller will respond better at low revs and vice versa.

Let us know how it goes for you with the conversion to fuelinjection! -
__________________
Drive Safely,
Albert

Last edited by dc lindberg; 22 Oct 2009 at 10:24.
Reply With Quote
  #6
Old 22 Oct 2009
AliBaba's Avatar
Registered Users
Veteran HUBBer

Join Date: Apr 2001
Location: Norway
Posts: 1,350
Personally I like Bings and in many ways I find the superior to injection but Silent Hektik might fit your needs (if you have the cash): SILENT HEKTIK Automotive Hard- & Software - BMW Boxer ICM (Einspritzung) für Normal- + Doppelzündung



When it comes to the discussion about the size of the throttlebodies I’m not sure if I agree with Lindberg, at least not when it comes to Bing.
Reply With Quote
  #7
Old 22 Oct 2009
Registered Users
Veteran HUBBer

Join Date: Oct 2002
Location: Stockholm - Sweden
Posts: 316
[quote=AliBaba;
When it comes to the discussion about the size of the throttlebodies I’m not sure if I agree with Lindberg, at least not when it comes to Bing.
[/quote]


Alibaba - this IS a controversial issue -
I know -
As for carb-sizes; I base my point of view on two facts:
a) I've tested
b) It is the correct mathematical / physical / engine technical combination. You will find the formula in Graham A Bells Fourstroke Performance Tuning published by Haynes Books. Bells non-verified (no references) books claim is corroborated by the textbook in internal combustion engine fundamentals by Prof Heywood at MIT.

So you have experience and scientific facts. However, in -real life- things are not necessarily the same as in theory of the abstract world... what works for you on your engines may or may not work on mine, and vice versa: and this I know for a "fact" as well through trial and error - my bikes/engines do not behave in the same manner in spite of being the same cc and series. We have to be open for tricks played on us by reality -

Isn't great to be able to disagree -

Thank you for the tip on the Silent Hektik injection kit! I have compleatly missed that they have it. Most greatful for the up-dating -
__________________
Drive Safely,
Albert
Reply With Quote
  #8
Old 22 Oct 2009
AliBaba's Avatar
Registered Users
Veteran HUBBer

Join Date: Apr 2001
Location: Norway
Posts: 1,350
Quote:
Originally Posted by dc lindberg View Post
Isn't great to be able to disagree -
Yes

I know the theory, but I also do know that CV-carbs suffer less when “oversized” then most other carbs

In fact I have built my recent engine with small carbs, but now I’m in doubt…. The engine is running well (80 N/m @ 3500 RPM, stock ignition) but I will like to achieve the same torque at a wider RPM-range. But of course I will do various modifications at the same time so even if I succeed it doesn’t prove a thing.
Reply With Quote
  #9
Old 23 Oct 2009
electric_monk's Avatar
Moderator
Veteran HUBBer

Join Date: Aug 2001
Location: Dublin, Ireland
Posts: 262
It's interesting that some of the BMW Factory Dakar riders (Juan Rom and John Deacon) decided to go with the Bing carbs instead of fuel injection on their race bikes.
Attached Thumbnails

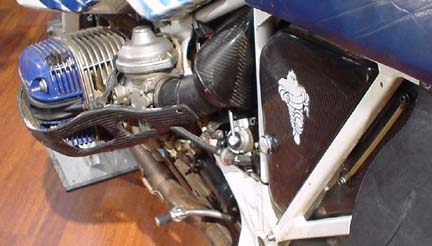

Carbs To Injection-boxer_motor-left-frame_and_gas_tank.jpg

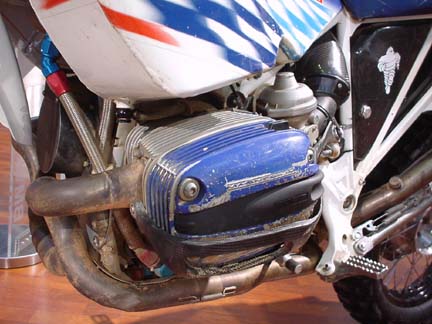

Carbs To Injection-boxer_motor-left-closeup-small.jpg

__________________
The electric monk always has faith.
Reply With Quote
  #10
Old 23 Oct 2009
AliBaba's Avatar
Registered Users
Veteran HUBBer

Join Date: Apr 2001
Location: Norway
Posts: 1,350
I don’t think it was the rider’s choice to go with carbs. All the 900RR (including Lundmarks bike) was equipped with carbs.
The 900RR is a beautiful bike, it’s the only oilhead I would like to own:



Later when the HP2 was used for racing they kept the FI, but it was a few years later and the HP2 was only used for shorter competitions.
Reply With Quote
  #11
Old 23 Oct 2009
Steve Pickford's Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2003
Location: Oxford, UK
Posts: 1,028
Quote:
Originally Posted by daytonatwin View Post
I get your drift. I did not realise that some oil-heads have injection reliability problems.
I didn't say that there were problems. You get the occassional component failure but complete ECU failure is rare, I'm in the bike trade (BMW) & have yet to hear of a bike requiring a replacement ECU. The Hall Sensor is merely a trigger for the injection & ignition. Mine failed at 55,000 miles when the wiring became brittle due to engine heat.

The Lambda Probe failed on my girlfriends 1150GS at 50,000 miles but that's it.
__________________
My photos: www.possu.smugmug.com
Reply With Quote
  #12
Old 23 Oct 2009
Registered Users
Veteran HUBBer

Join Date: Oct 2002
Location: Stockholm - Sweden
Posts: 316
Quote:
Originally Posted by electric_monk View Post
It's interesting that some of the BMW Factory Dakar riders (Juan Rom and John Deacon) decided to go with the Bing carbs instead of fuel injection on their race bikes.
Used to be a big problem with the "Cobra" oilheads... (shook like the pheumatic asphalt cutters).
Problem solved by replacing the injectionsystem with Bings. Think it was the 1995-96 issues that were the worst. The company back in 1997 that specialized in these conversions was:
WITEC Motorsport

One can drive many miles using carbs on the electrical power from the battery should the alternator stop working. One will not get far at all with a fuel injection vehicle... I would -never- go on a trip through desolate contryside using fuel injection if I could replace it with carbs.
The alternator on the oilhead is a standard car-issue so it is far better than the stock airhead alternator, but still... I like to play it as safe as I can -
__________________
Drive Safely,
Albert
Reply With Quote
  #13
Old 2 Sep 2010
Registered Users
Veteran HUBBer

Join Date: Oct 2002
Location: Stockholm - Sweden
Posts: 316
How is it going?
What have you decided to do?
__________________
Drive Safely,
Albert
Reply With Quote
  #14
Old 7 Oct 2010
Contributing Member
HUBB regular

Join Date: Mar 2006
Location: England
Posts: 37
Are you talking to me!!!!

Albert I fitted a pair of 34mm Mikunis. I had to change some of the jets as they came with standard jetting from the good ol USA.

Much more improved throttle response , and I think better fuel economy,

regards Mike T.
Reply With Quote
